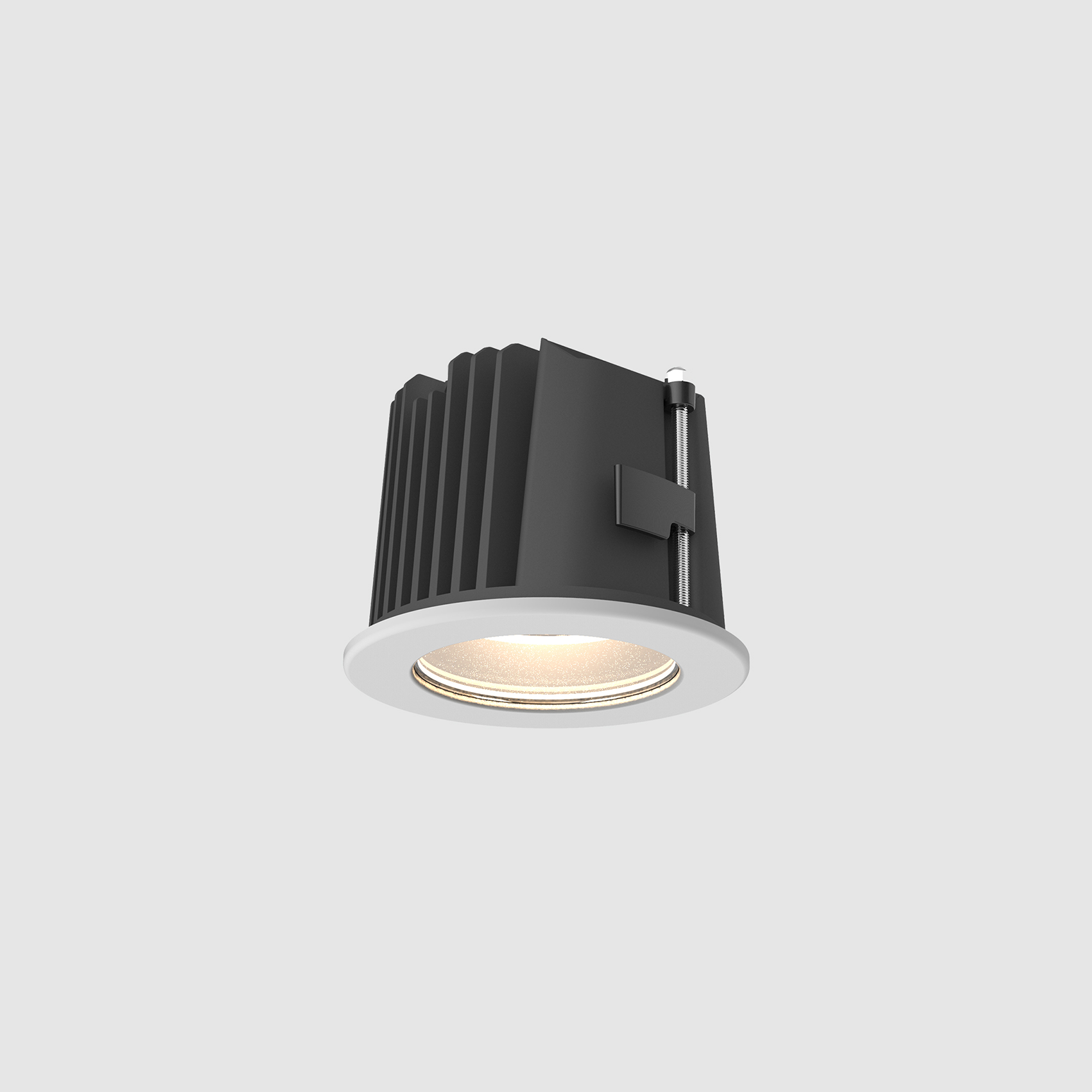

BODY
lP65 waterproof structure with Die-casting aluminum heatsink, excellent heat radiation system, Deep anti-glare to achive LOW UGR.

LED SOURCES(TOP LED BRAND USED)
Citizen/Cree/Osram/Bridgelux
CRI: 90.95,97
CCT:2700K,3000K,4000K,5000K,6000K
SDCM <3
Other CRl, CCT options available per requests.

DRIVER
Supplied with integrated non-dimmable driver.(external)
Dimming options: 0/1-10V, DALI (DALI DT6/ DALI DT8), Phase Cut, CASAMBI

OPTIC
Lens
Beam angle: 15°/24°/36°/60°

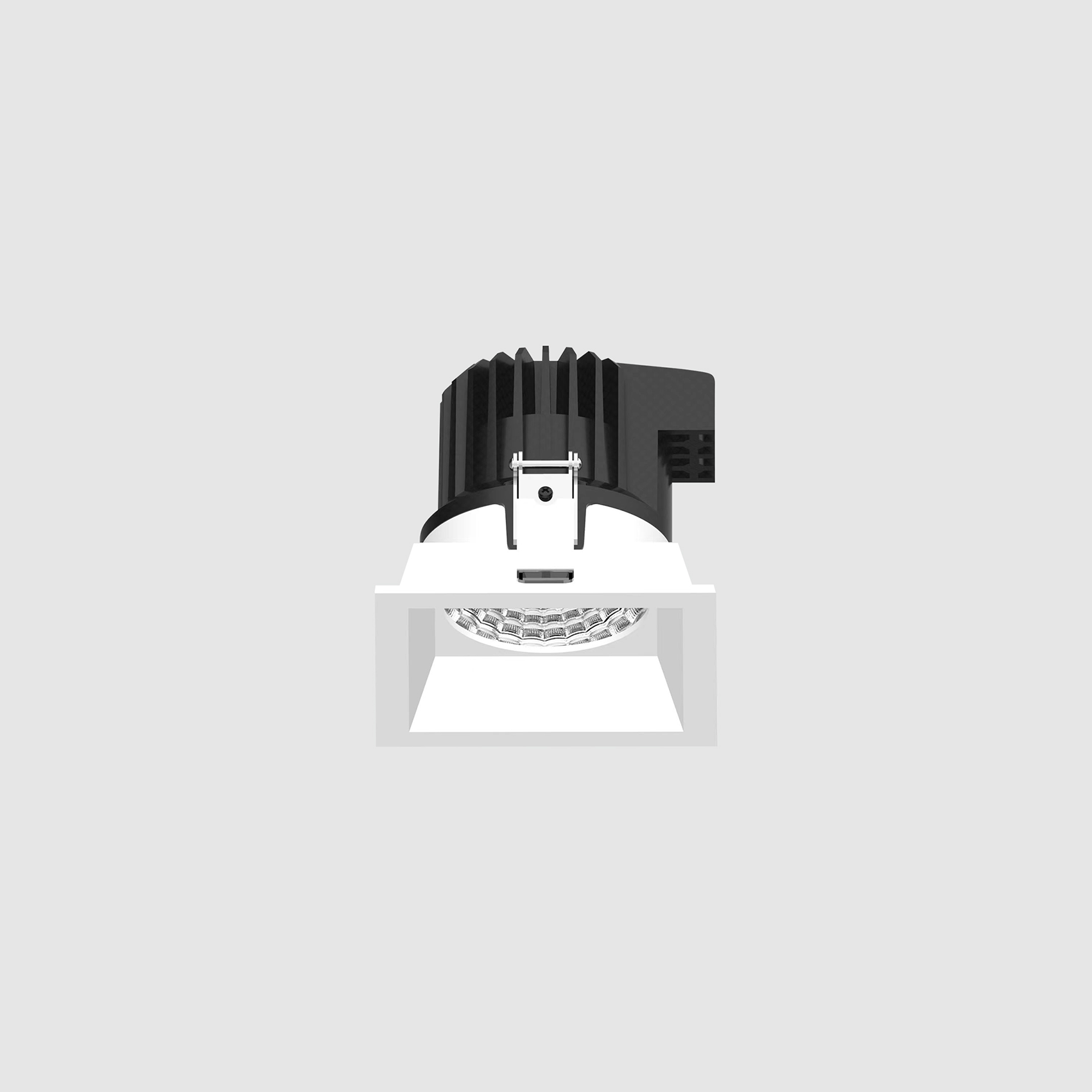

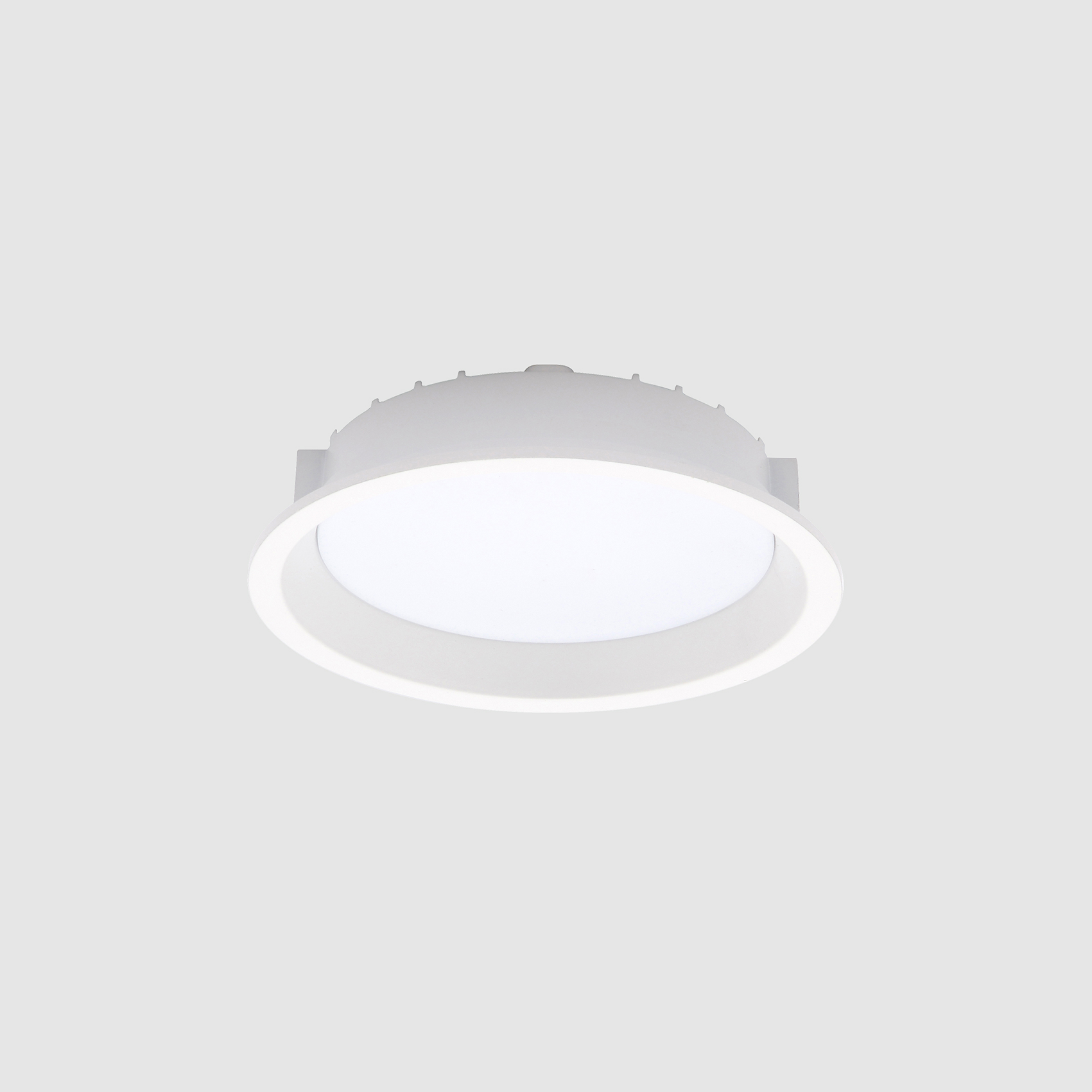

BODY
Fixed recessed SMD downlight with simple and clean design.Deep front frame provided LOW UGR to create a confortable environment,various of reflector color finishing to meet different using demand.

LED SOURCES
Osram/Lumiled/Epistar
CRI: 83/90/95
CCT:2700K,3000K,4000K,5000K,6000K
SDCM<3
Other CRl, CCT options available per requests,

DRIVER
Supplied with integrated non-dimmable driver.(external)
Dimming options: 0/1-10V, DALI (DT6/DT8), Phase Cut, CASAMBI

OPTIC
Opel Diffusier
100°

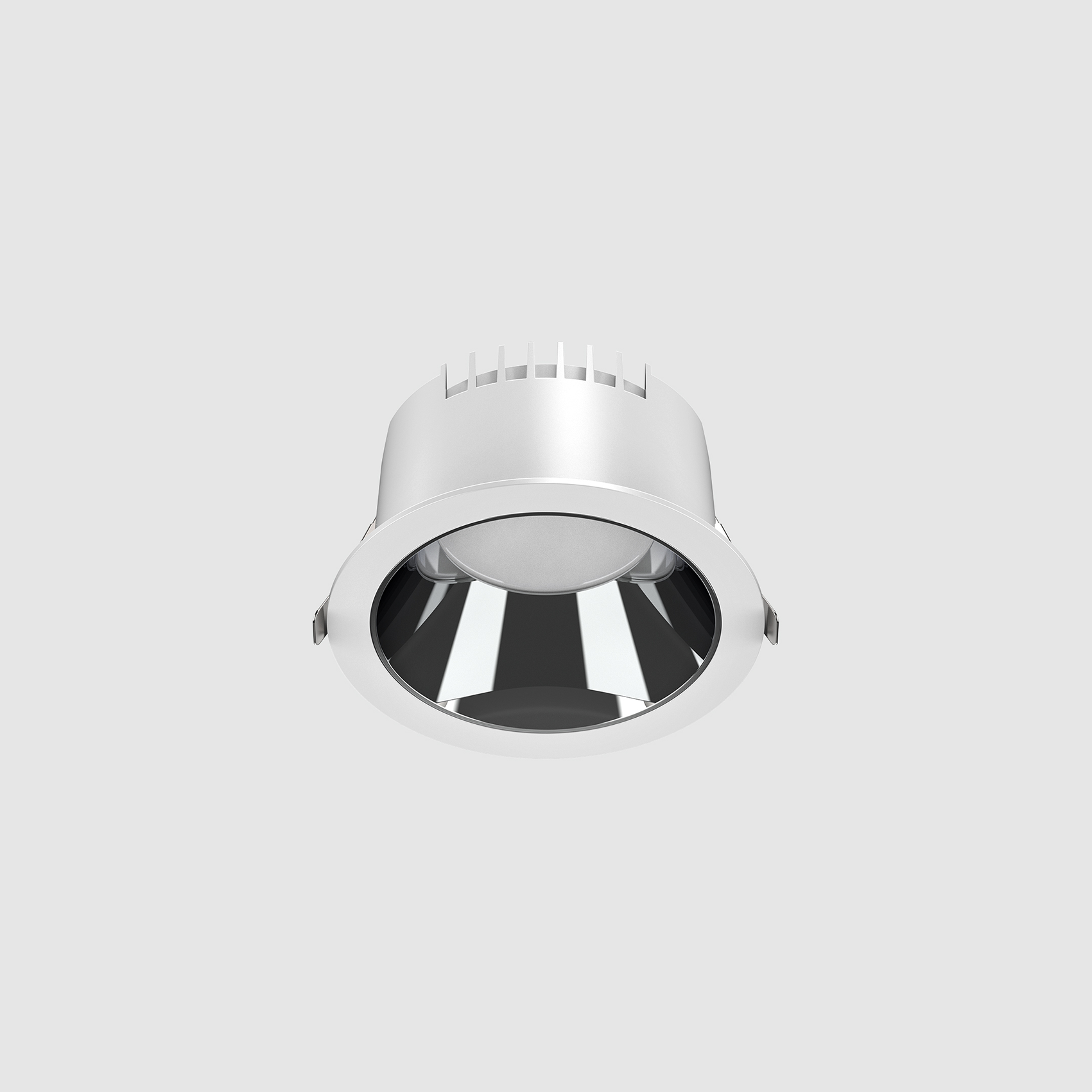

BODY
Fixed recessed downlight with simple and clean design.Deep front frame provided LOW UGR to create a confortable environment,various of reflector color finishing to meet different using demand.

LED SOURCES
Citizen/Cree/Osram/Bridgelux

DRIVER
Supplied with integrated non-dimmable driver.(external)
Dimming options: 0/1-10V, DALI (DT6/DT8), Phase Cut, CASAMBI

OPTIC
Front Focal Lens
Beam angle: 15/24/36/60°
Opal Diffusier: 80°

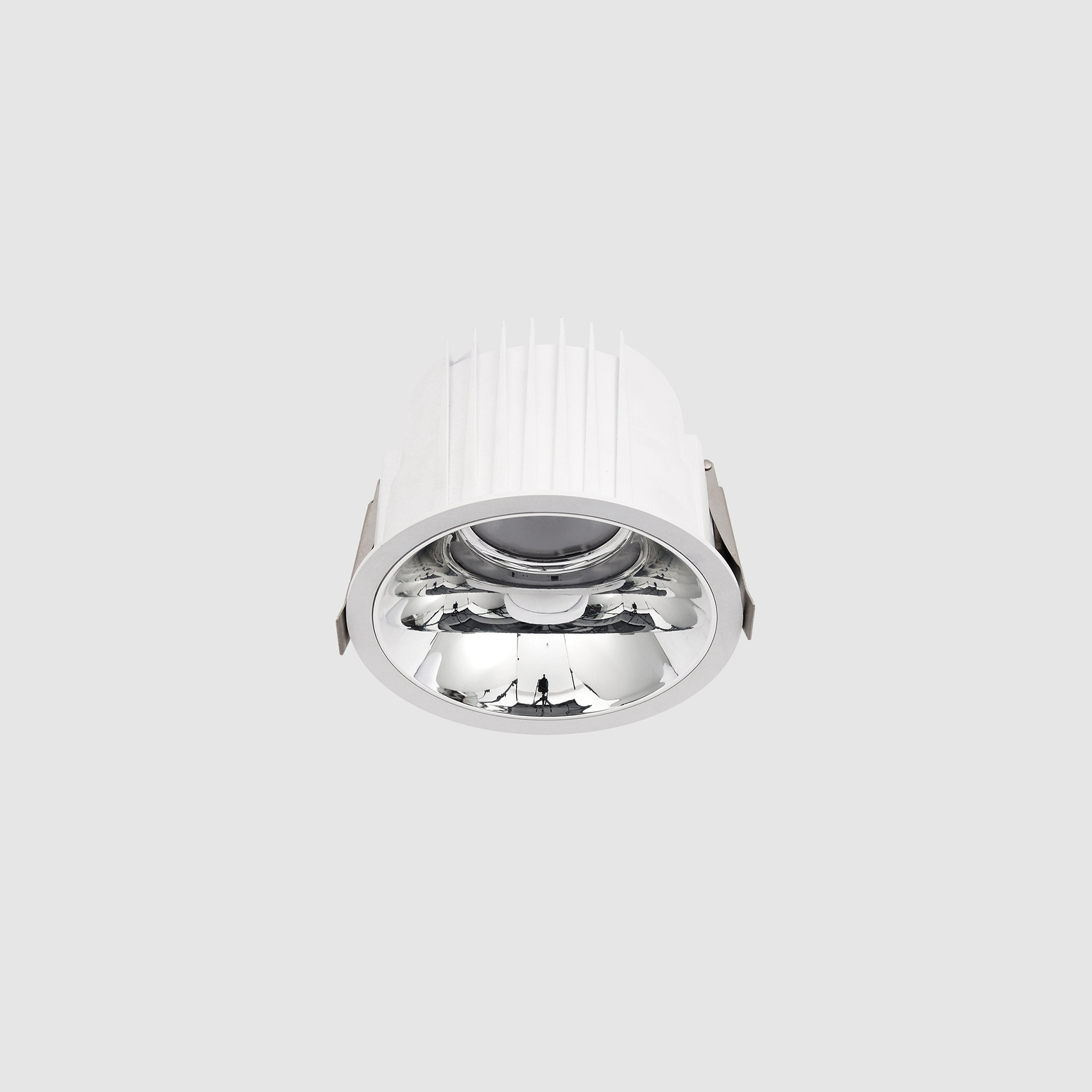

BODY
ADC12 die-cast aluminum heat dissipation aluminum material, surface dust removal and oil spray treatment;
the unique flow groove design of the lamp body ensures good heat dissipation performance.Using original imported light source, it has high brightness, uniform illumination and no dark areas.
The power range is 15W-35W, which can meet the brightness design requirements of different spaces; the illumination angle of this product cannot be adjusted

OPTIC
Beam angle:15/24/36/45/60°
