BODY
Fixed recessed SMD downlight with simple and clean design.Deep front frame provided LOW UGR to create a confortable environment,various of reflector color finishing to meet different using demand.
LED SOURCES
Osram/Lumiled/Epistar
CRI: 83/90/95
CCT:2700K,3000K,4000K,5000K,6000K
SDCM<3
Other CRl, CCT options available per requests,
DRIVER
Supplied with integrated non-dimmable driver.(external)
Dimming options: 0/1-10V, DALI (DT6/DT8), Phase Cut, CASAMBI
OPTIC
Opel Diffusier
100°
Fixed recessed SMD downlight with simple and clean design.Deep front frame provided LOW UGR to create a confortable environment,various of reflector color finishing to meet different using demand.
LED SOURCES
Osram/Lumiled/Epistar
CRI: 83/90/95
CCT:2700K,3000K,4000K,5000K,6000K
SDCM<3
Other CRl, CCT options available per requests,
DRIVER
Supplied with integrated non-dimmable driver.(external)
Dimming options: 0/1-10V, DALI (DT6/DT8), Phase Cut, CASAMBI
OPTIC
Opel Diffusier
100°

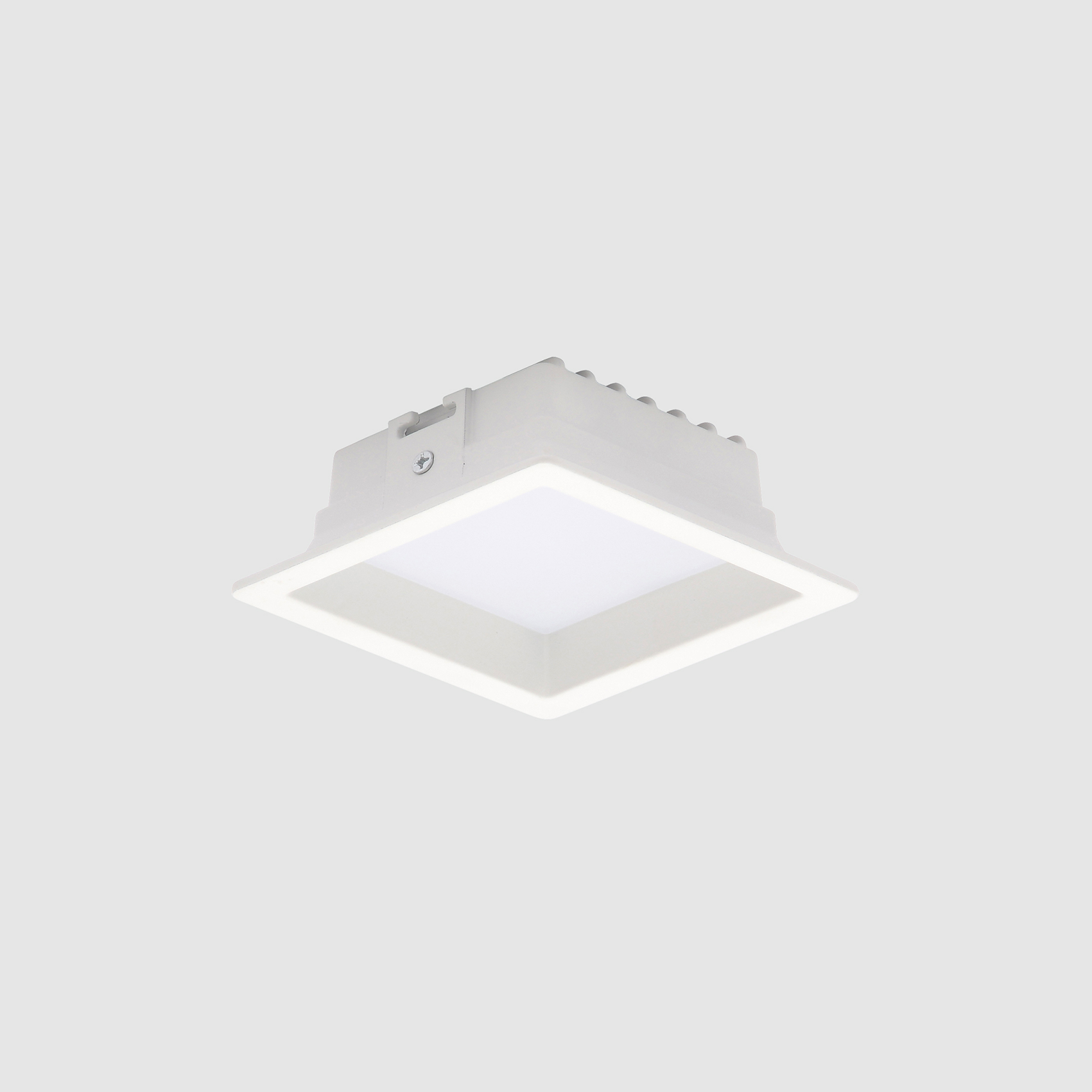

PAULIN Downlight TD-7212
| Input voltage (volts) | AC220-240V | Protection Index | IP44 | ||||
| Beam angle | 100° | UGR | <21 | ||||
| Color temperature | 3000K/4000K/5000K/6000K/3CCT | Title | - | ||||
| Color rendering index (Ra) | >83/ >90/ >95 | Rotation | - | ||||
| Operating temperature | -25°C-50° | MacAdam step | 3 | ||||
| Rated life hours | 35,000-50,000 LM80 | Finishes | White/Black | ||||
| LED chip | SMD | Reflector | - | ||||
| Certification | CE,CB,TUV,CCC,SAA | Accessories | - | ||||
| Warranty | 5 Years | Lighting body material | Aluminum |
