BODY
Fixed recessed downlight with simple and clean design.Deep front frame provided LOW UGR to create a confortable environment,various of reflector color finishing to meet different using demand.
LED SOURCES
Citizen/Cree/Osram/Bridgelux
DRIVER
Supplied with integrated non-dimmable driver.(external)
Dimming options: 0/1-10V, DALI (DT6/DT8), Phase Cut, CASAMBI
OPTIC
Front Focal Lens
Beam angle: 15/24/36/60°
Opal Diffusier: 80°
Fixed recessed downlight with simple and clean design.Deep front frame provided LOW UGR to create a confortable environment,various of reflector color finishing to meet different using demand.
LED SOURCES
Citizen/Cree/Osram/Bridgelux
DRIVER
Supplied with integrated non-dimmable driver.(external)
Dimming options: 0/1-10V, DALI (DT6/DT8), Phase Cut, CASAMBI
OPTIC
Front Focal Lens
Beam angle: 15/24/36/60°
Opal Diffusier: 80°

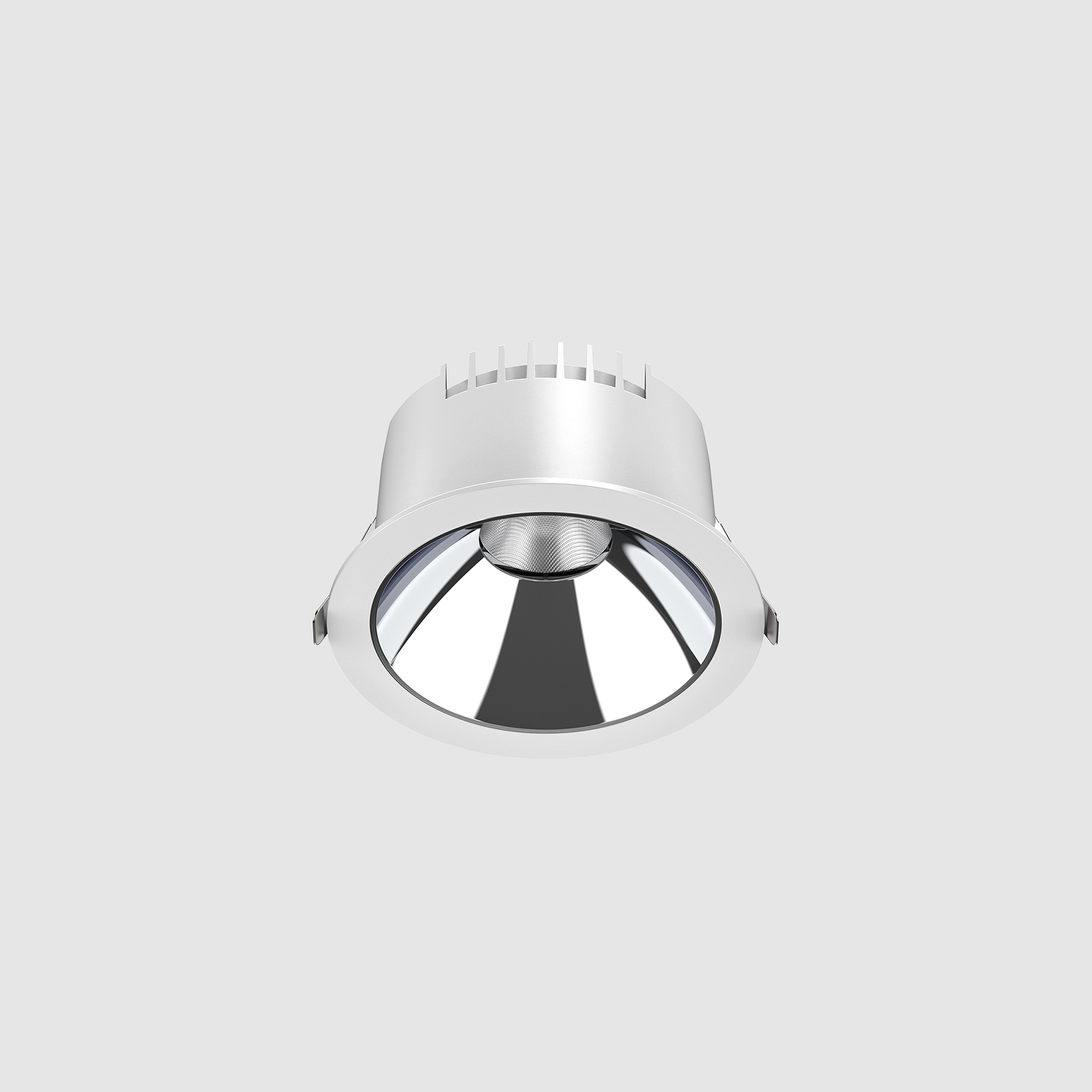

EDIOR Downlight TD-7235
| Input voltage (volts) | AC220-240V | Protection Index | IP40 | ||||
| Beam angle | 15°/24°/36°/60° | UGR | <19 | ||||
| Color temperature | 2700K/3000K/4000K/6000K/3CCT | Title | - | ||||
| Color rendering index (Ra) | >90/ >95/ >97 | Rotation | - | ||||
| Operating temperature | -25°C-50° | MacAdam step | 3 | ||||
| Rated life hours | 35,000-50,000 LM80 | Finishes | White/Black | ||||
| LED chip | COB/SMD | Reflector | Matt Black & White/Chromed Black & Silver | ||||
| Certification | CE,CB,TUV,CCC,SAA | Accessories | Frosted Lens/Honeycom/Spread Lens | ||||
| Warranty | 5 Years | Lighting body material | Aluminum |
