BODY
lP65 waterproof structure with Die-casting aluminum heatsink, excellent heat radiation system, Deep anti-glare to achive LOW UGR.
LED SOURCES(TOP LED BRAND USED)
Citizen/Cree/Osram/Bridgelux
CRI: 90.95,97
CCT:2700K,3000K,4000K,5000K,6000K
SDCM <3
Other CRl, CCT options available per requests.
DRIVER
Supplied with integrated non-dimmable driver.(external)
Dimming options: 0/1-10V, DALI (DALI DT6/ DALI DT8), Phase Cut, CASAMBI
OPTIC
Lens
Beam angle: 15°/24°/36°/60°
lP65 waterproof structure with Die-casting aluminum heatsink, excellent heat radiation system, Deep anti-glare to achive LOW UGR.
LED SOURCES(TOP LED BRAND USED)
Citizen/Cree/Osram/Bridgelux
CRI: 90.95,97
CCT:2700K,3000K,4000K,5000K,6000K
SDCM <3
Other CRl, CCT options available per requests.
DRIVER
Supplied with integrated non-dimmable driver.(external)
Dimming options: 0/1-10V, DALI (DALI DT6/ DALI DT8), Phase Cut, CASAMBI
OPTIC
Lens
Beam angle: 15°/24°/36°/60°

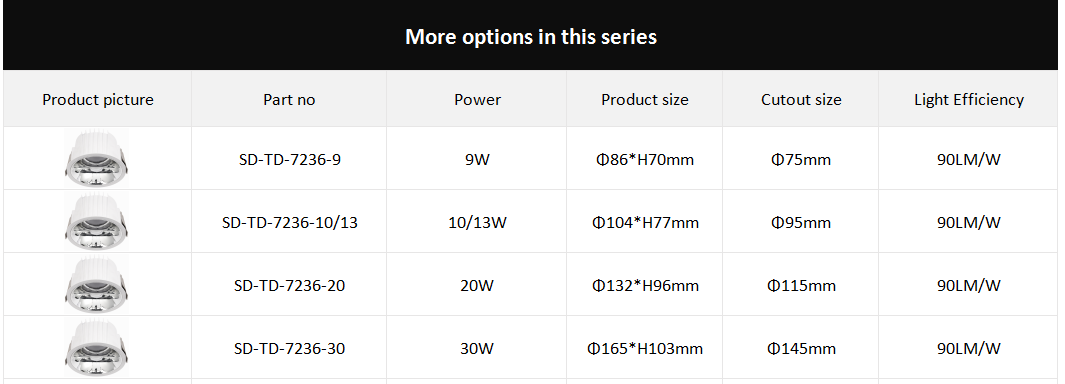

SONIA Downlight TD-7236
| Input voltage (volts) | AC220-240V | Protection Index | IP54,IP65 | ||||
| Beam angle | 15°/24°/36°/60° | UGR | <19 | ||||
| Color temperature | 2700K/3000K/4000K/6000K/3CCT | Title | - | ||||
| Color rendering index (Ra) | >90/ >95/ >97 | Rotation | - | ||||
| Operating temperature | -25°C-50° | MacAdam step | 2-3 | ||||
| Rated life hours | 35,000-50,000 LM80 | Finishes | White/Black | ||||
| LED chip | COB | Reflector | Matt Black & White/Chromed Black & Silver | ||||
| Certification | CE,CB,TUV,CCC,SAA | Accessories | Frosted Lens/Honeycom/Spread Lens | ||||
| Warranty | 5 Years | Lighting body material | Aluminum |
