BODY
Multi-Function Down Light designed with deepregressed lamp position for glare-free
355 degree rotary and 90 degree tilt for variouslighting demand.Die-casting body provided excellent heat radiation
LED SOURCES(TOP LED BRAND USED)
Citizen/Cree/Osram/Bridgelux
CRI: 90,95,97
CCT:2700K,3000K,4000K,5000K,6000K SDCM<3
Other CRl, CCT options,Tuneable white and Dim to warm versions available by reguest
OPTIC
Beam angle:15°/24°/36°50°;8°-24°zoomable
Multi-Function Down Light designed with deepregressed lamp position for glare-free
355 degree rotary and 90 degree tilt for variouslighting demand.Die-casting body provided excellent heat radiation
LED SOURCES(TOP LED BRAND USED)
Citizen/Cree/Osram/Bridgelux
CRI: 90,95,97
CCT:2700K,3000K,4000K,5000K,6000K SDCM<3
Other CRl, CCT options,Tuneable white and Dim to warm versions available by reguest
OPTIC
Beam angle:15°/24°/36°50°;8°-24°zoomable

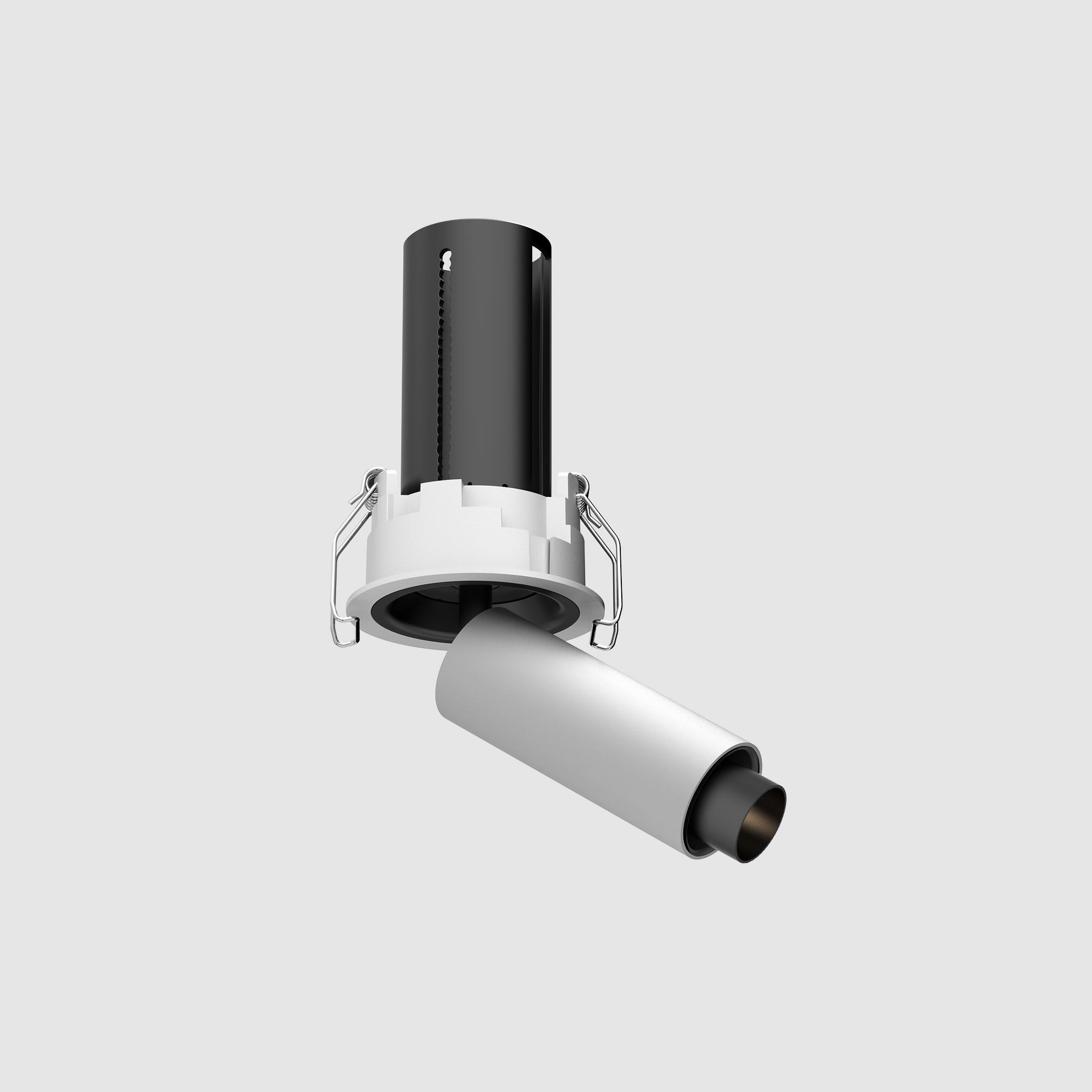

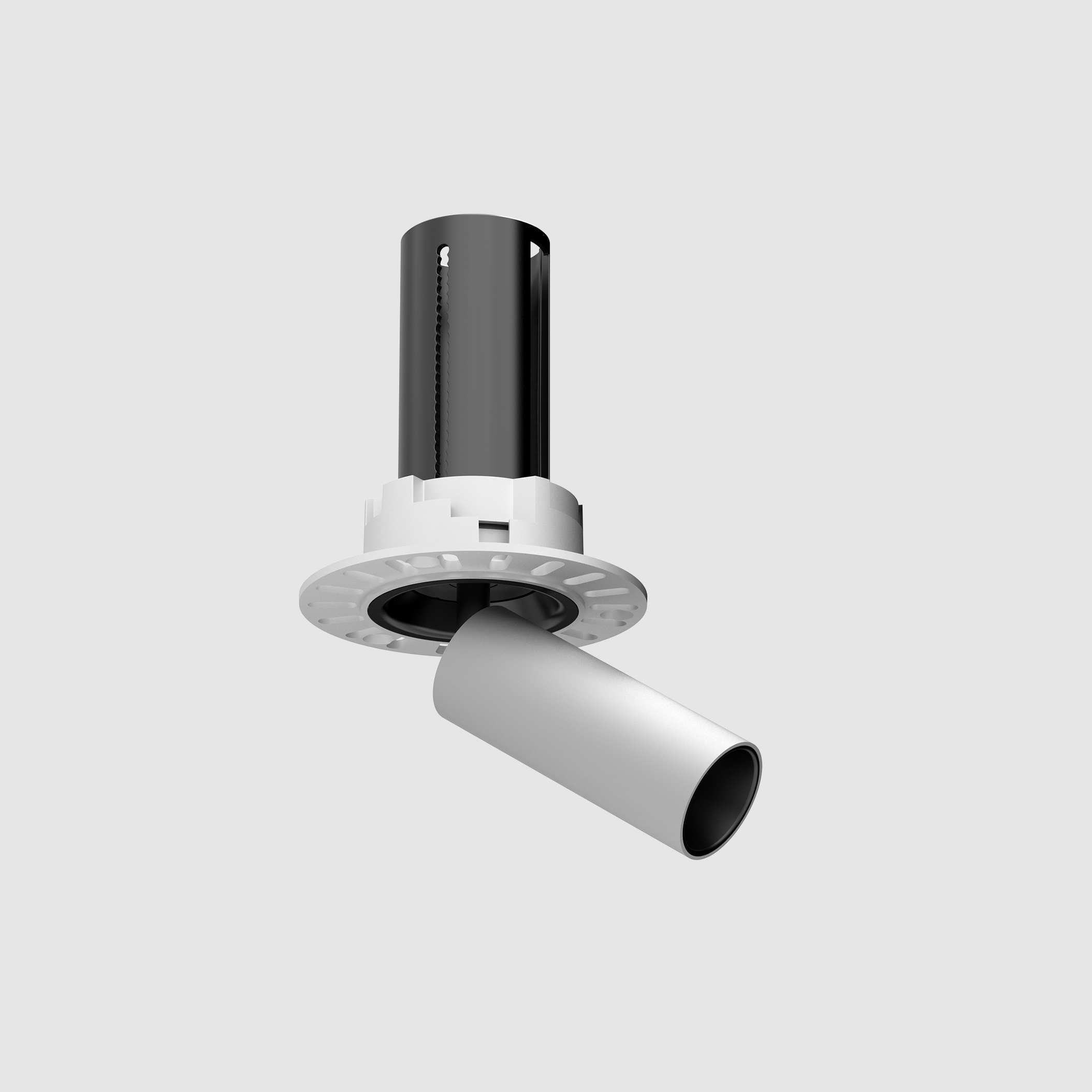

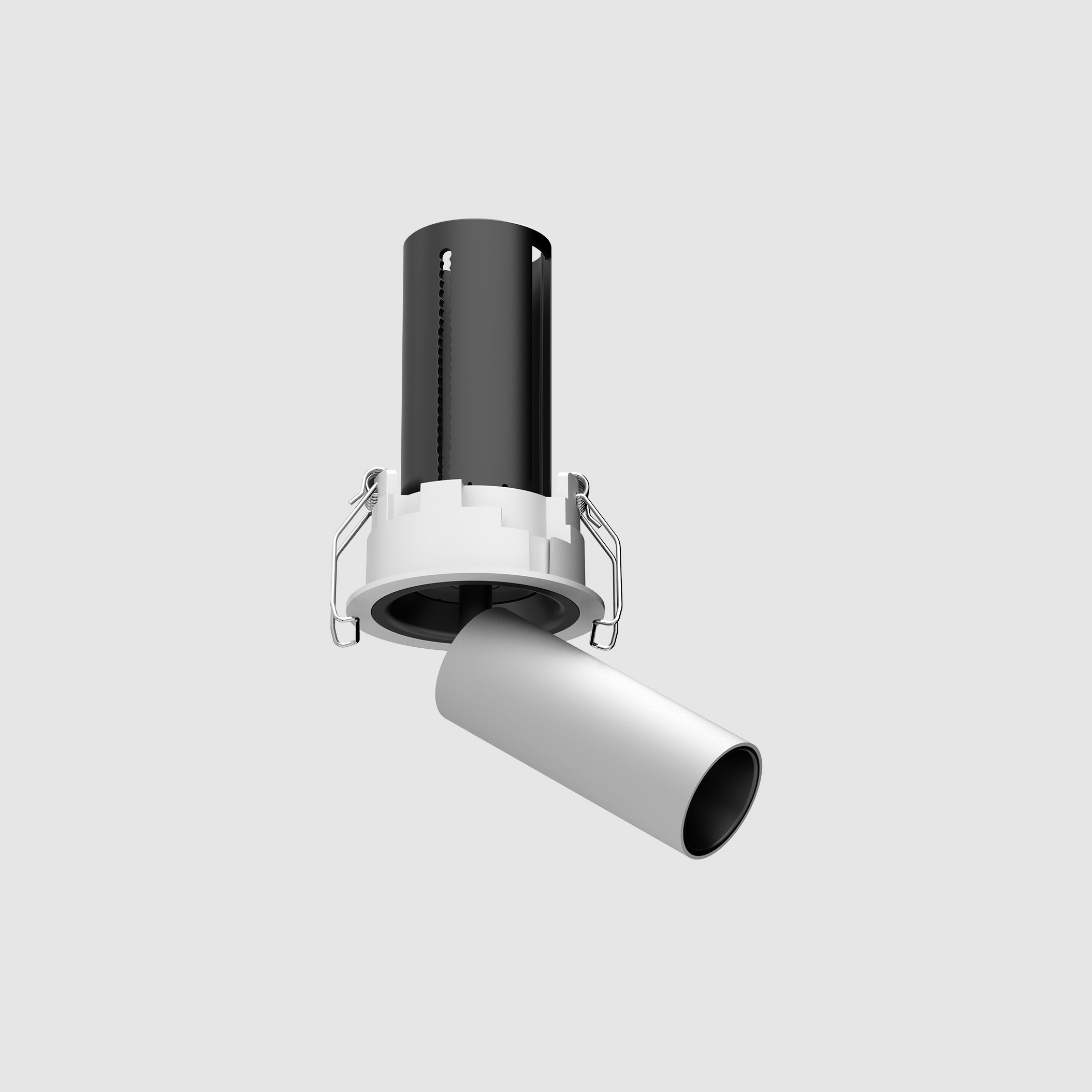

ADIN Telescopic Spotlight TH-2220
| Input voltage (volts) | AC220-240V | Protection Index | IP20 | ||||
| Beam angle | 15°/24°/36°50°; 8°-24°zoomable | UGR | <19 | ||||
| Color temperature | 2700K/3000K/4000K/6000K/3CCT | Title | 90° | ||||
| Color rendering index (Ra) | >90/ >95/ >97 | Rotation | 355° | ||||
| Operating temperature | -25°C-50° | MacAdam step | 2-3 | ||||
| Rated life hours | 35,000-50,000 LM80 | Finishes | White/Black | ||||
| LED chip | COB | Reflector | White/Black | ||||
| Certification | CE,CB,TUV,CCC,SAA | Accessories | Frosted Lens/Honeycomb/Spread Lens | ||||
| Warranty | 5 Years | Lighting body material | Aluminum |
