BODY
Various design of the linear light to wide beam,rotationally symmetrical light distribution for generallighting. Low URG design suitable for office, schoolworkshop.
LED SOURCES
Citizen/Cree/Osram/BridgeluxCRI: 90,95,97
CCT:2700K,3000K,4000K,5000K,6000K
3CCT,SDCM <3
Other CRl, CCT options available per requests.
DRIVER
Supplied with integrated non-dimmable driver.(external)Dimming options: 0/1-10V, DALI (DALI DT6/ DALI DT8), Phase Cut, CASAMBI
OPTIC
Opal DiffusierBeam angle: 120°
Various design of the linear light to wide beam,rotationally symmetrical light distribution for generallighting. Low URG design suitable for office, schoolworkshop.
LED SOURCES
Citizen/Cree/Osram/BridgeluxCRI: 90,95,97
CCT:2700K,3000K,4000K,5000K,6000K
3CCT,SDCM <3
Other CRl, CCT options available per requests.
DRIVER
Supplied with integrated non-dimmable driver.(external)Dimming options: 0/1-10V, DALI (DALI DT6/ DALI DT8), Phase Cut, CASAMBI
OPTIC
Opal DiffusierBeam angle: 120°

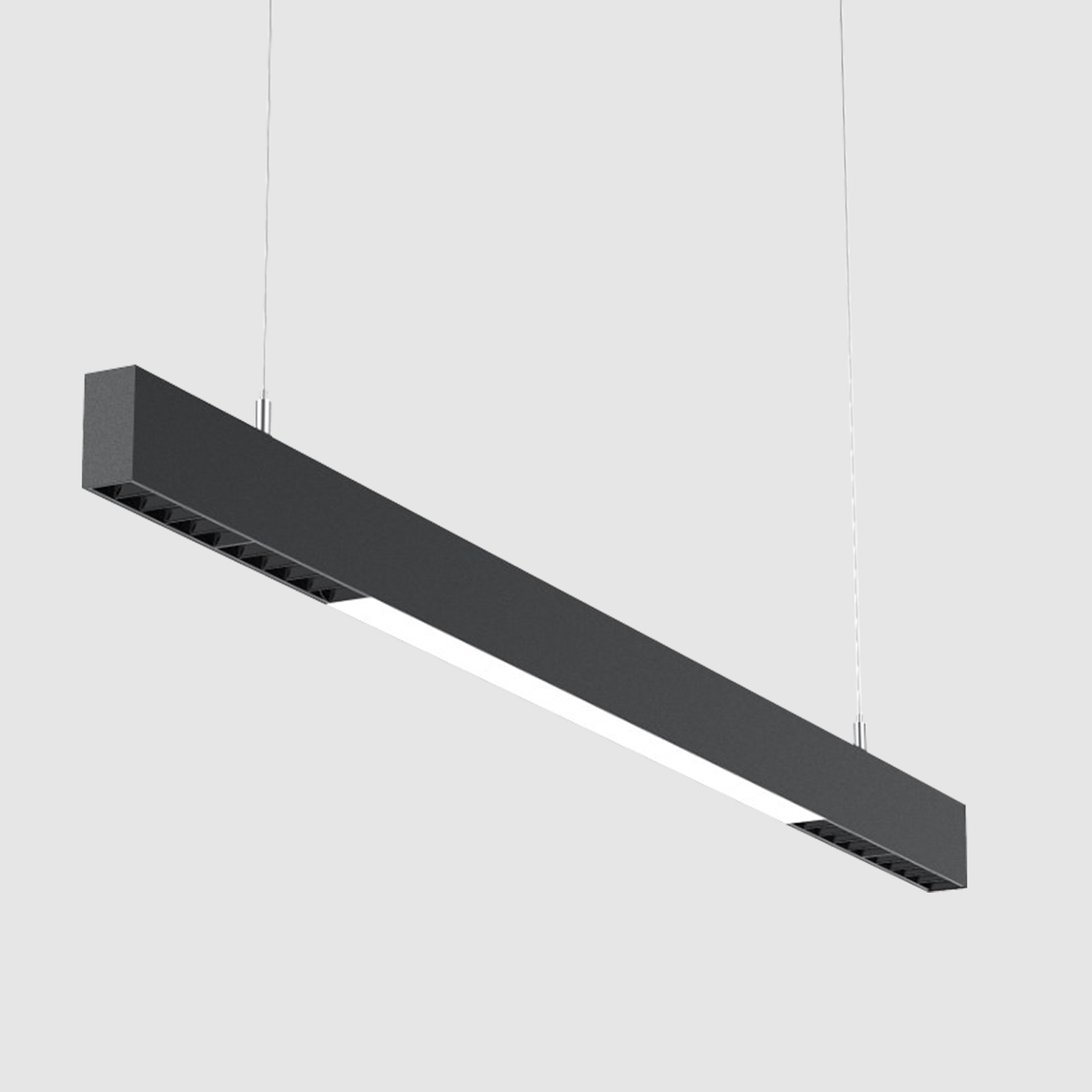

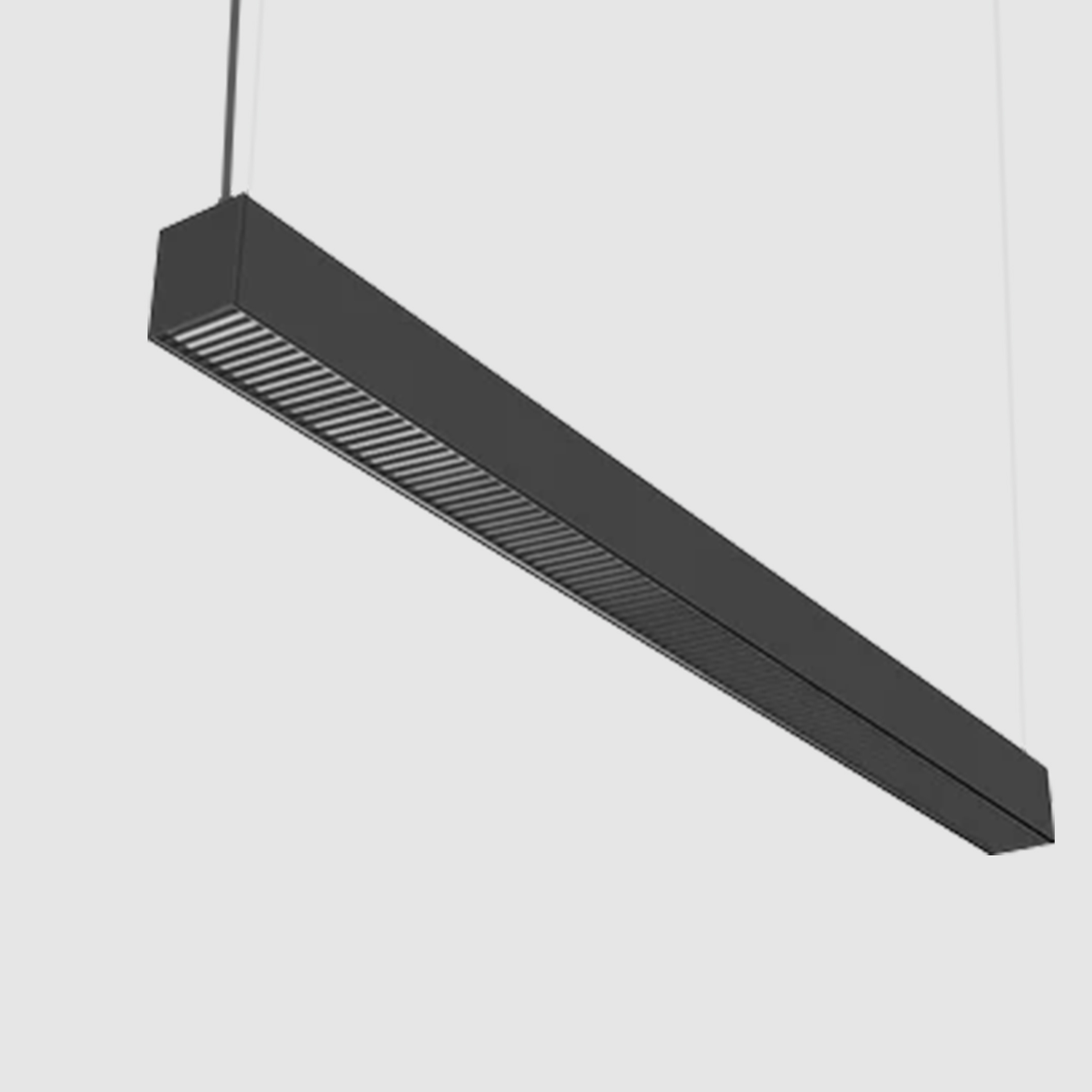

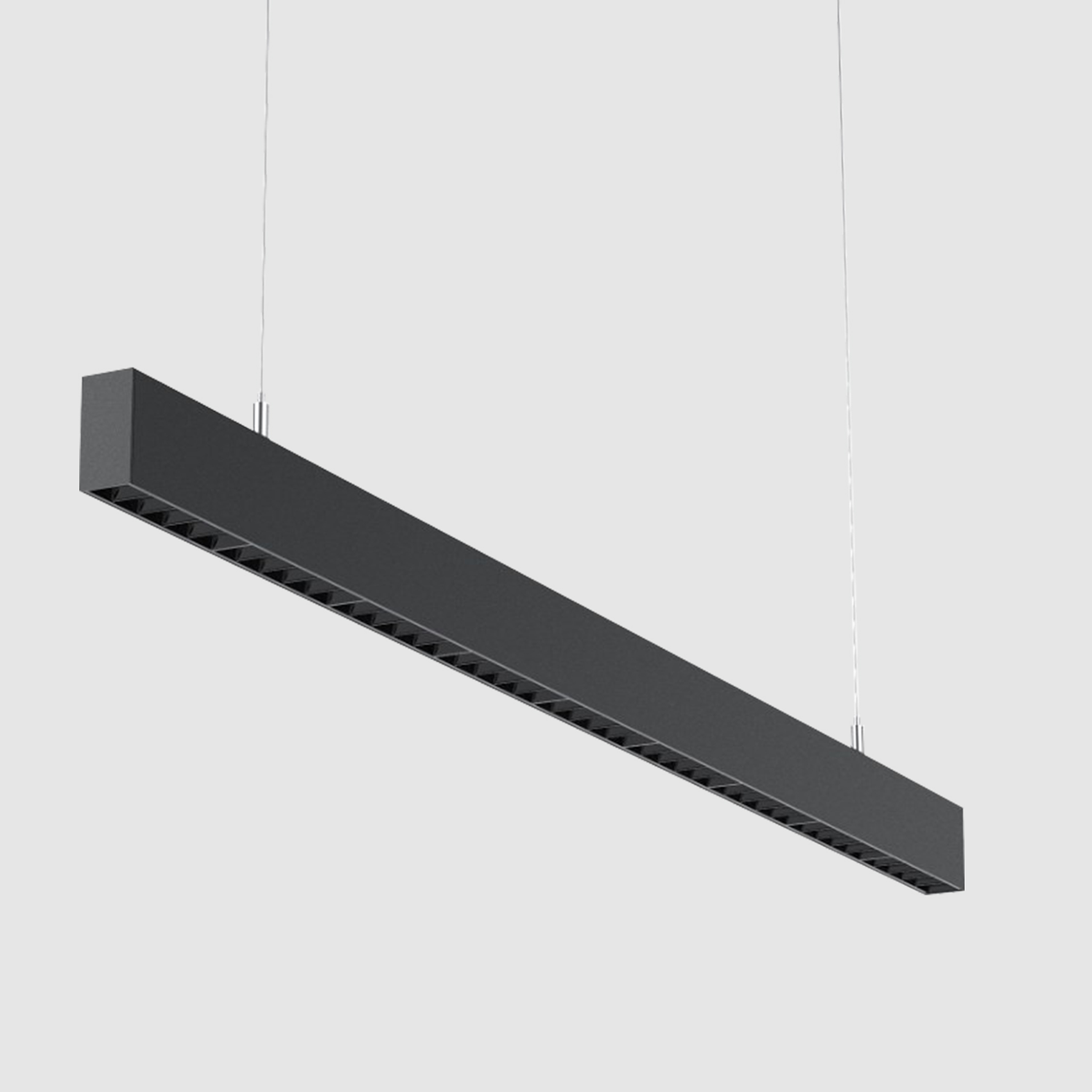

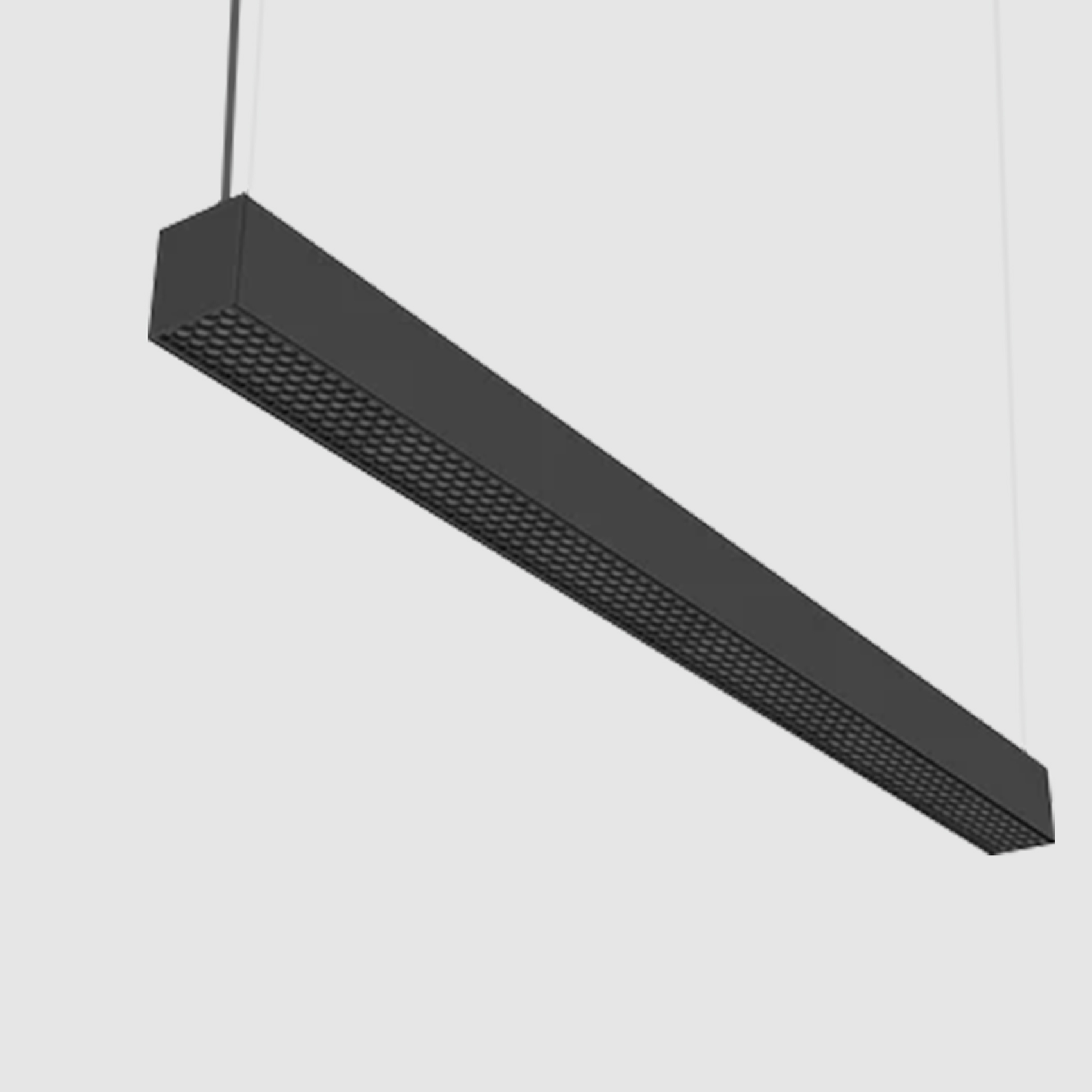

LAILA Suspended Light SD-DX7610
| Input voltage (volts) | AC220-240V | Protection Index | IP20 | ||||
| Beam angle | 120° | UGR | <19 | ||||
| Color temperature | 3000K/4000K/6000K/3CCT | Title | - | ||||
| Color rendering index (Ra) | >83>90/ >95 | Rotation | - | ||||
| Operating temperature | -25°C-50° | MacAdam step |
3
|
||||
| Rated life hours | 35,000-50,000 LM80 | Finishes | White/Black/Matt Sliver(customized) | ||||
| LED chip | SMD | Reflector | - | ||||
| Certification | CE,CB,TUV,CCC,SAA | Accessories | 1, Supesnion wire kit & surface brasket 2. Various connection clips |
||||
| Warranty | 5 Years | Lighting body material | Aluminum |
Accessories

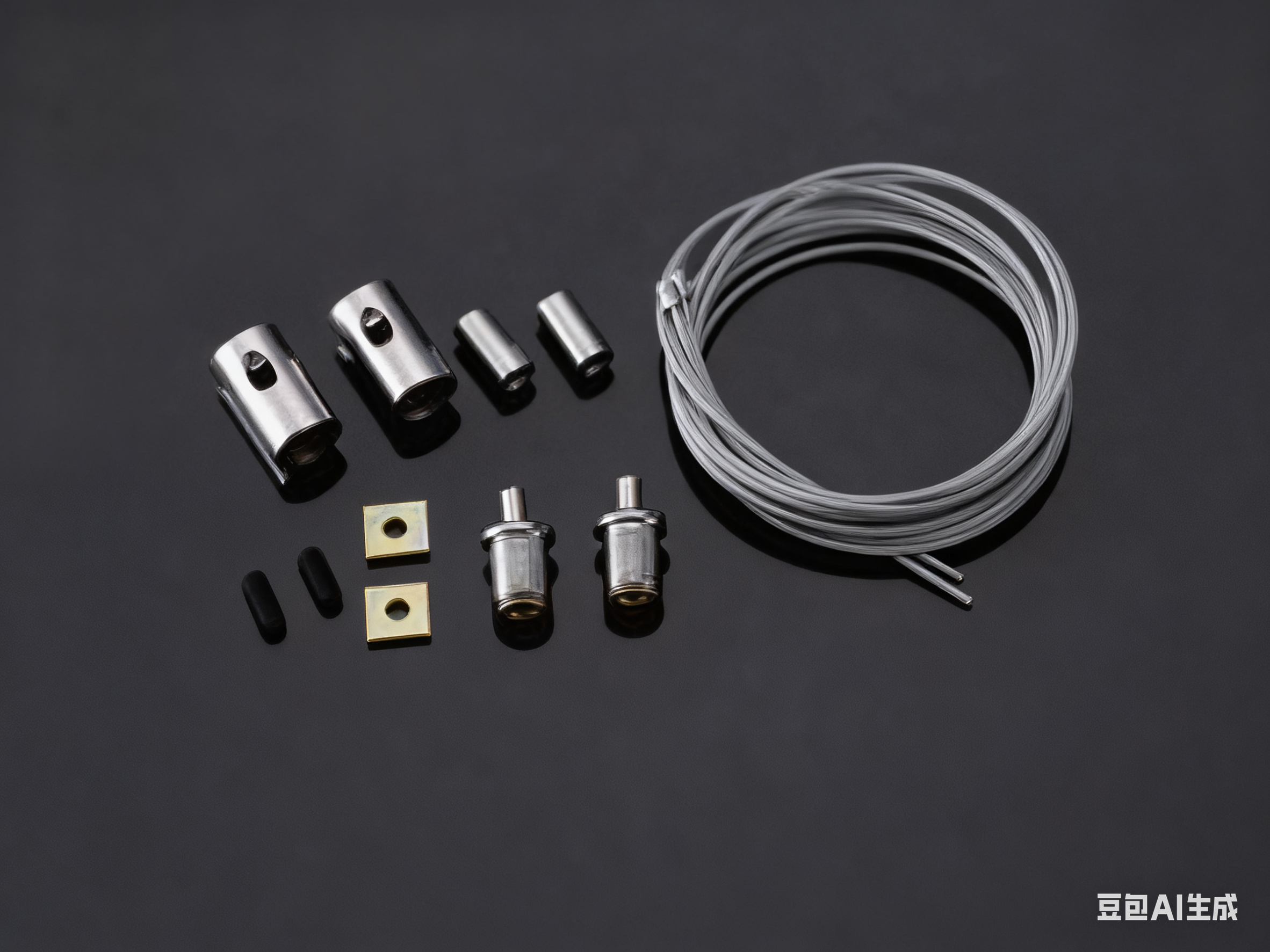

Suspension wire kit

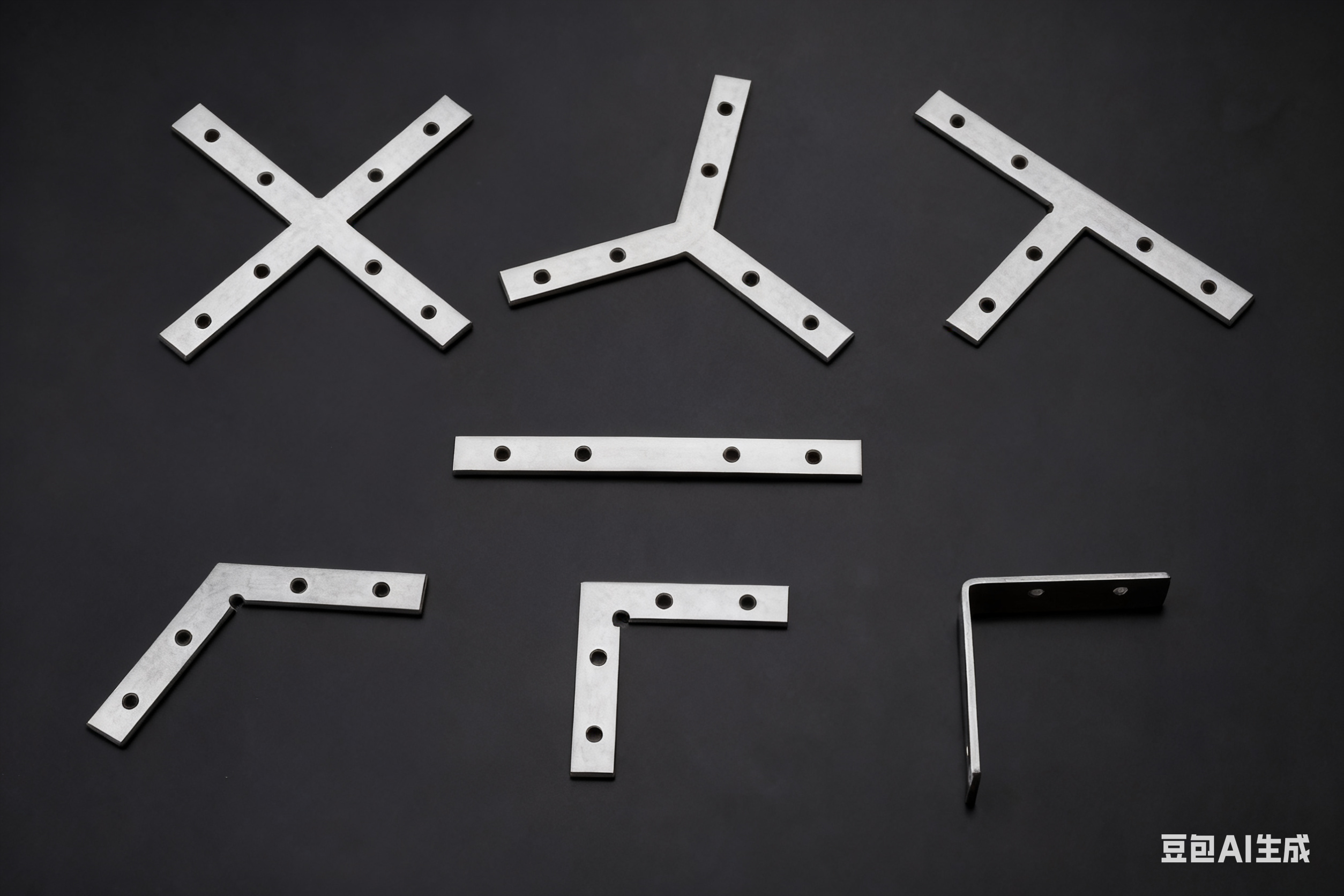

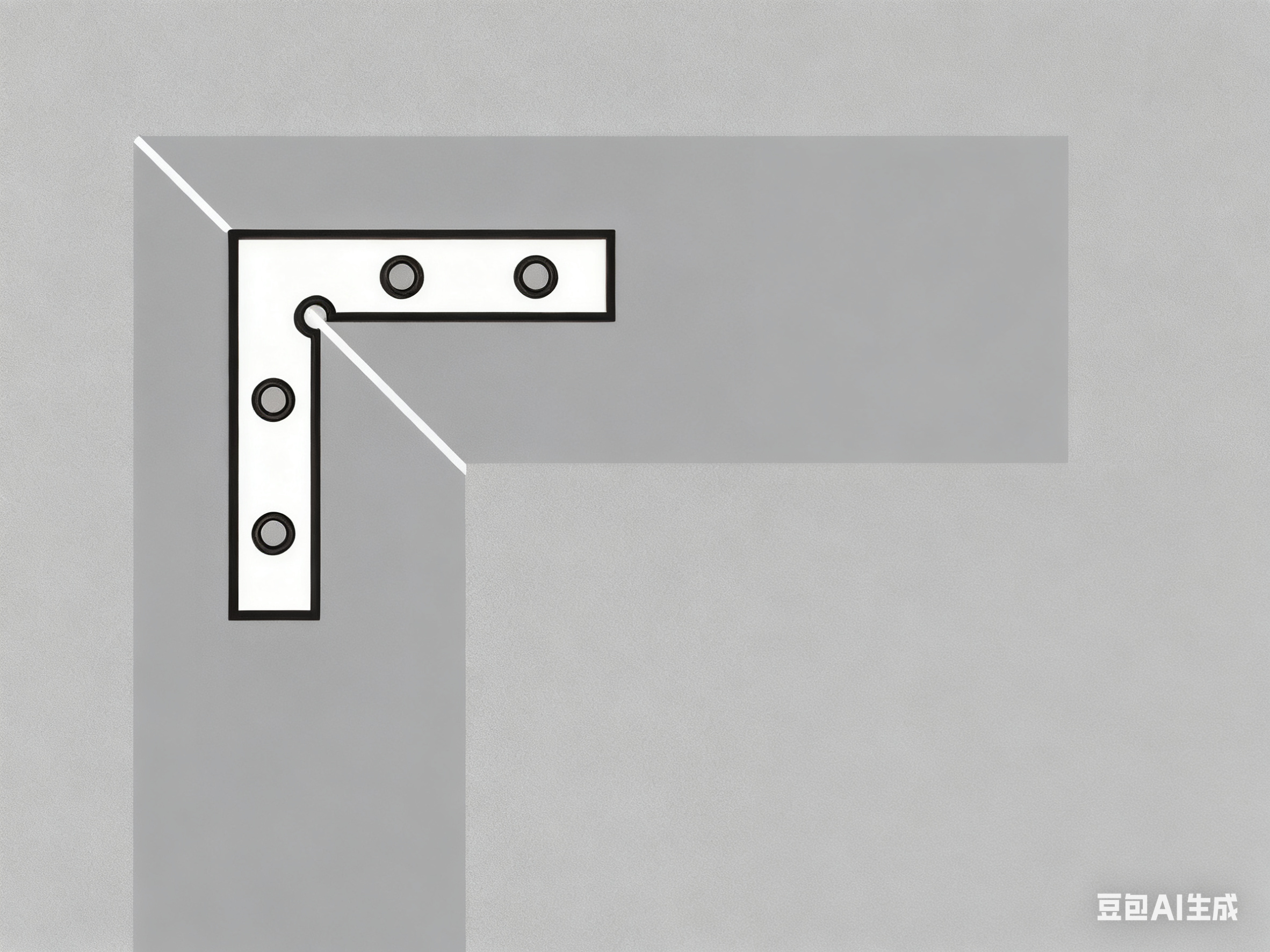

Connection Clips
