BODY
Round COB Suspending mounting luminaire.No-screws apprearance provide a neat and clean appearance. Driver Built-in, Easy for installation
LED SOURCES
Citizen/Cree/Osram/Bridgelux
CCT:2700K,3000K,4000K,5000K,6000K,3CCT,
SDCM<2-3,
Other CRl, CCT options,Tuneable whiteand Dim to Warm versions available by request
DRIVER
Supplied with integrated non-dimmable driver.(External)
Dimming options: 0/1-10V, DALI (DT6/DT8), Phase Cut, CASAMBI
OPTIC
Beam angle: 24°
Round COB Suspending mounting luminaire.No-screws apprearance provide a neat and clean appearance. Driver Built-in, Easy for installation
LED SOURCES
Citizen/Cree/Osram/Bridgelux
CCT:2700K,3000K,4000K,5000K,6000K,3CCT,
SDCM<2-3,
Other CRl, CCT options,Tuneable whiteand Dim to Warm versions available by request
DRIVER
Supplied with integrated non-dimmable driver.(External)
Dimming options: 0/1-10V, DALI (DT6/DT8), Phase Cut, CASAMBI
OPTIC
Beam angle: 24°

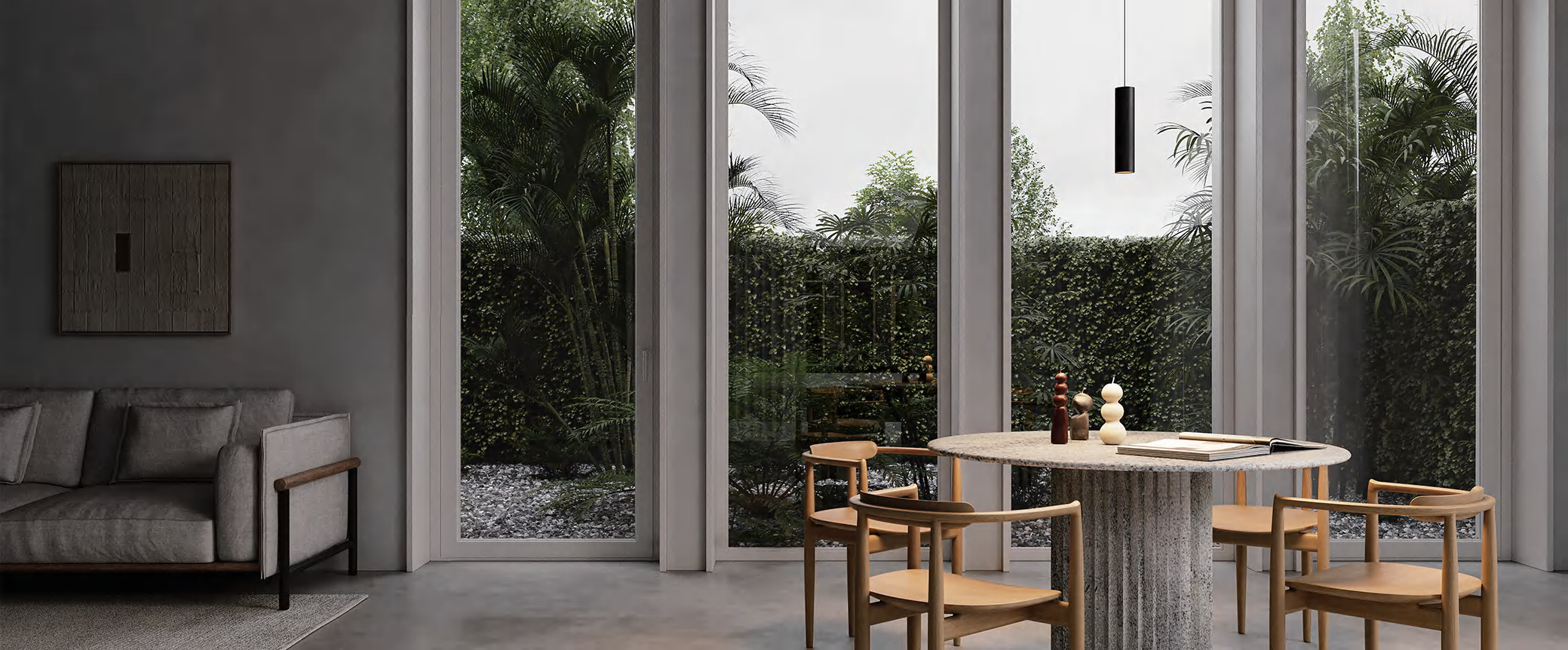

IWAN Pendant Light DX5003
| Input voltage (volts) | AC220-240V | Protection Index | IP20 | ||||
| Beam angle | 24° | UGR | <19 | ||||
| Color temperature | 2700K/3000K/4000K/6000K/3CCT | Title | - | ||||
| Color rendering index (Ra) | >90/ >95/ >97 | Rotation | - | ||||
| Operating temperature | -25°C-50° | MacAdam step | 2-3 | ||||
| Rated life hours | 35,000-50,000 LM80 | Finishes | White/Black/Gold | ||||
| LED chip | COB | Reflector | - | ||||
| Certification | CE,CB,TUV,CCC,SAA | Accessories | Frosted Lens/Honeycom/Spread Lens | ||||
| Warranty | 5 Years | Lighting body material | Aluminum |
