BODY

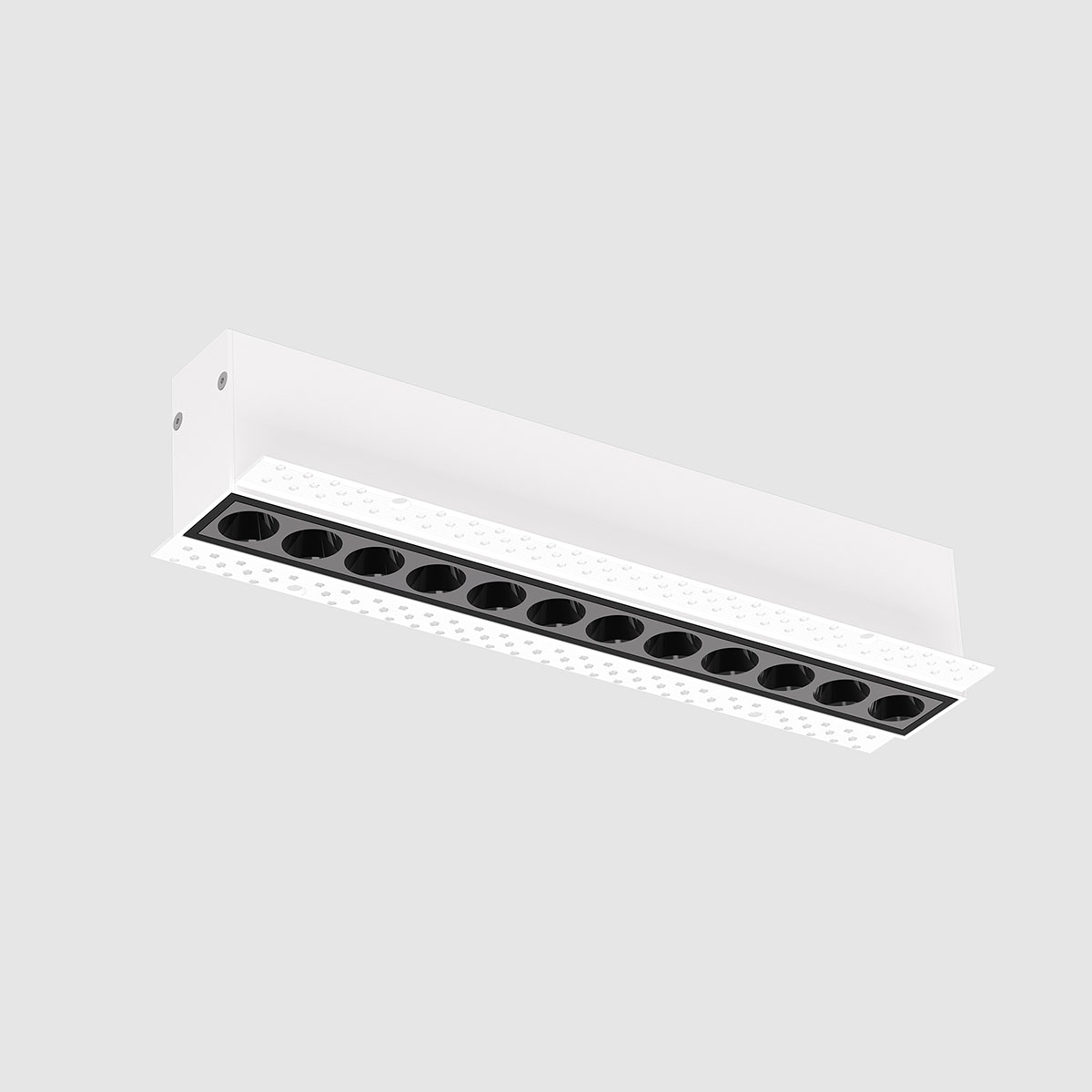

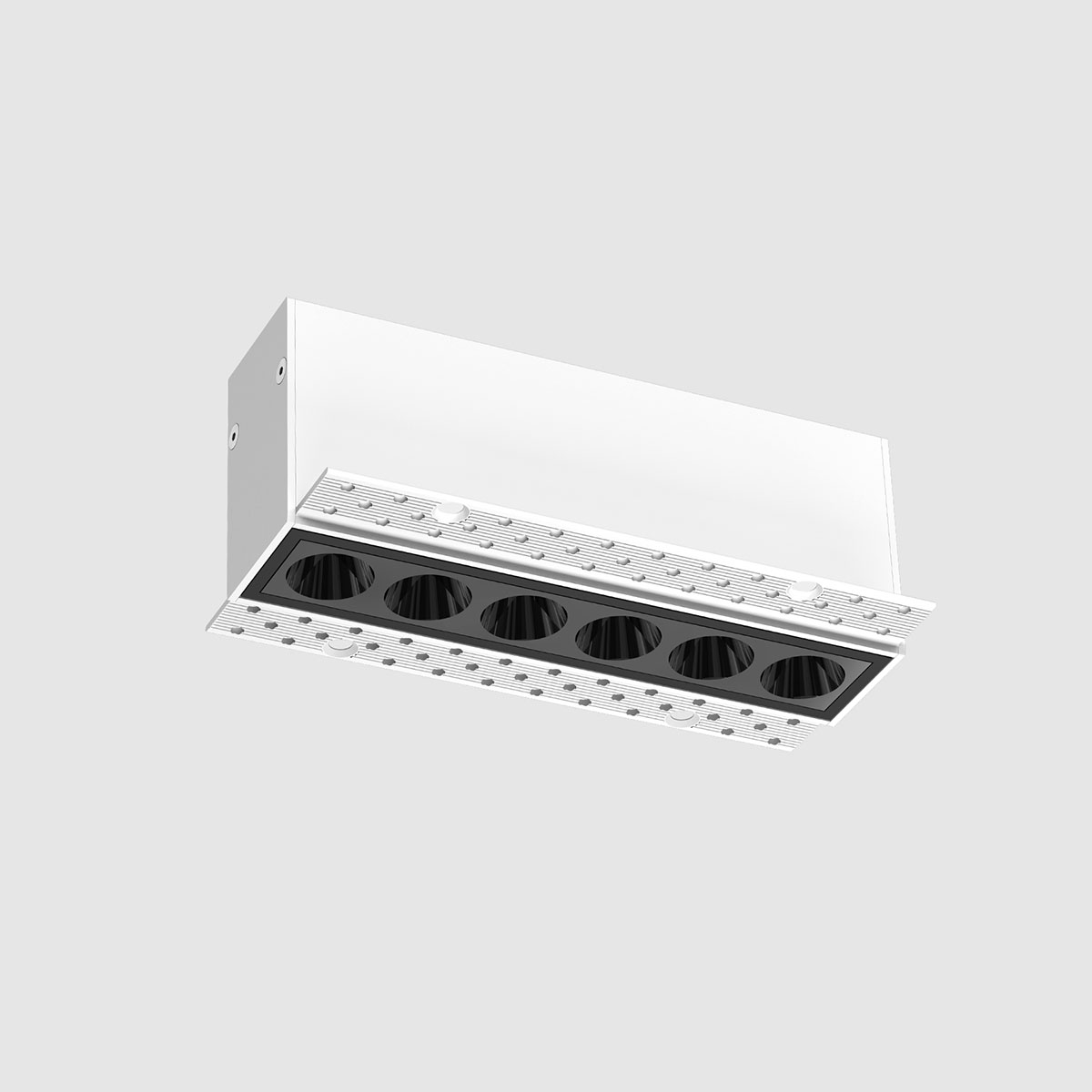

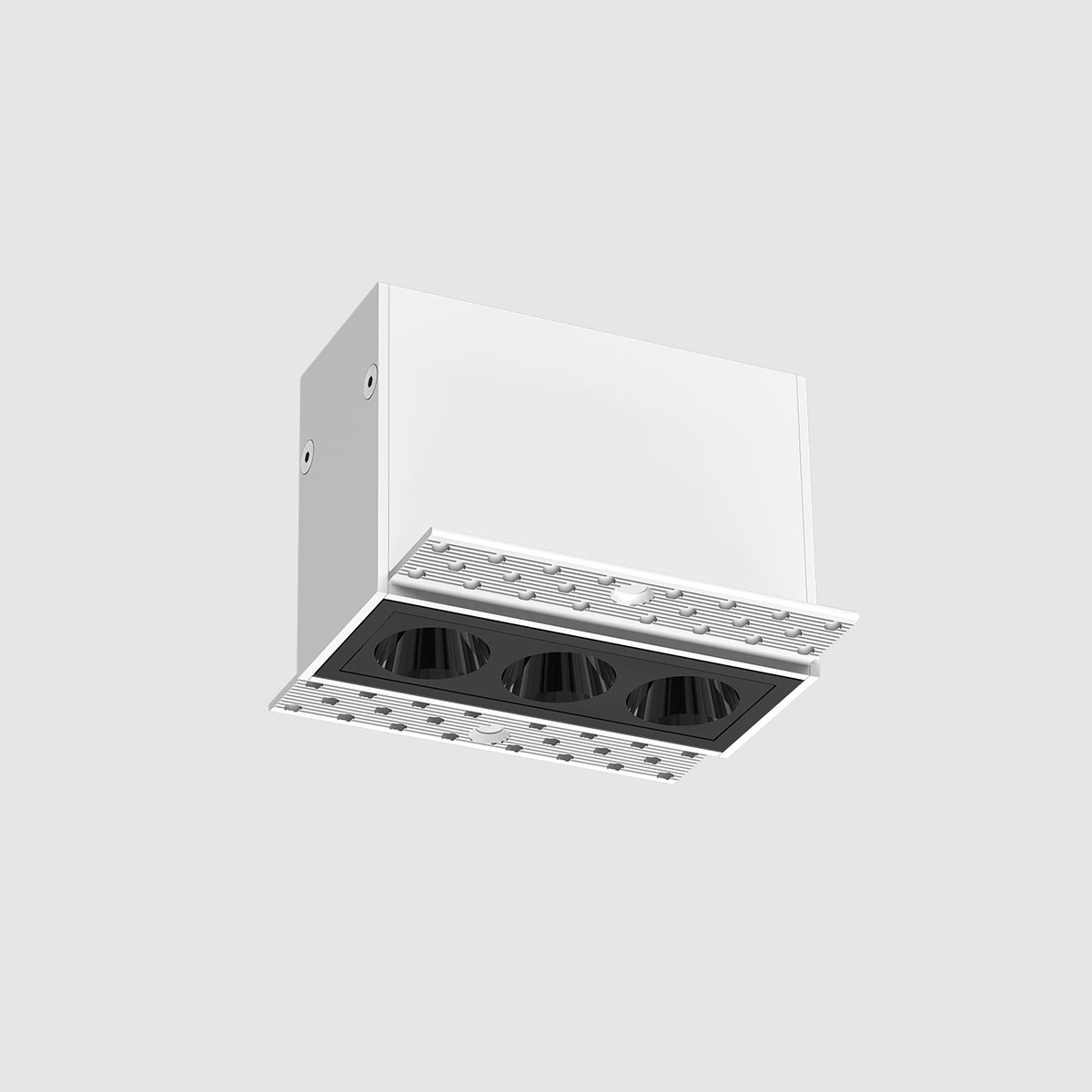

Linear Wall washer light designed with deep regressedlamp position for glare-freeDie-casting body provide good heat dissipation
LED SOURCES(TOP LED BRAND USED)
Citizen/Cree/Osram/Bridgelux
CRI: 90.95,97
CCT:2700K,3000K,4000K,5000K,6000K SDCM<3Other CRl, ccT options,Tuneable white and Dim to Wwarmwersions available by request
DRIVER
Supplied with integrated non-dimmable driver.(External)Dimming options: 0/1-10V, DALI (DALI DT6/ DALI DT8),Phase Cut,CASAMBI
OPTIC
Beam angle: Beam angle: 15°
| Input voltage (volts) | AC220-240V | Protection Index | IP20 | ||||
| Beam angle | 15°/24°/36° | UGR | <16 | ||||
| Color temperature | 3000K/4000K/6000K/3CCT | Title | - | ||||
| Color rendering index (Ra) | >83/ >90/ >95 | Rotation | - | ||||
| Operating temperature | -25°C-50° | MacAdam step | 3 | ||||
| Rated life hours | 35,000-50,000 LM80 | Finishes | White/Black | ||||
| LED chip | SMD | Reflector | - | ||||
| Certification | CE,CB,TUV,CCC,SAA | Accessories | - | ||||
| Warranty | 5 Years | Lighting body material | Aluminum |
