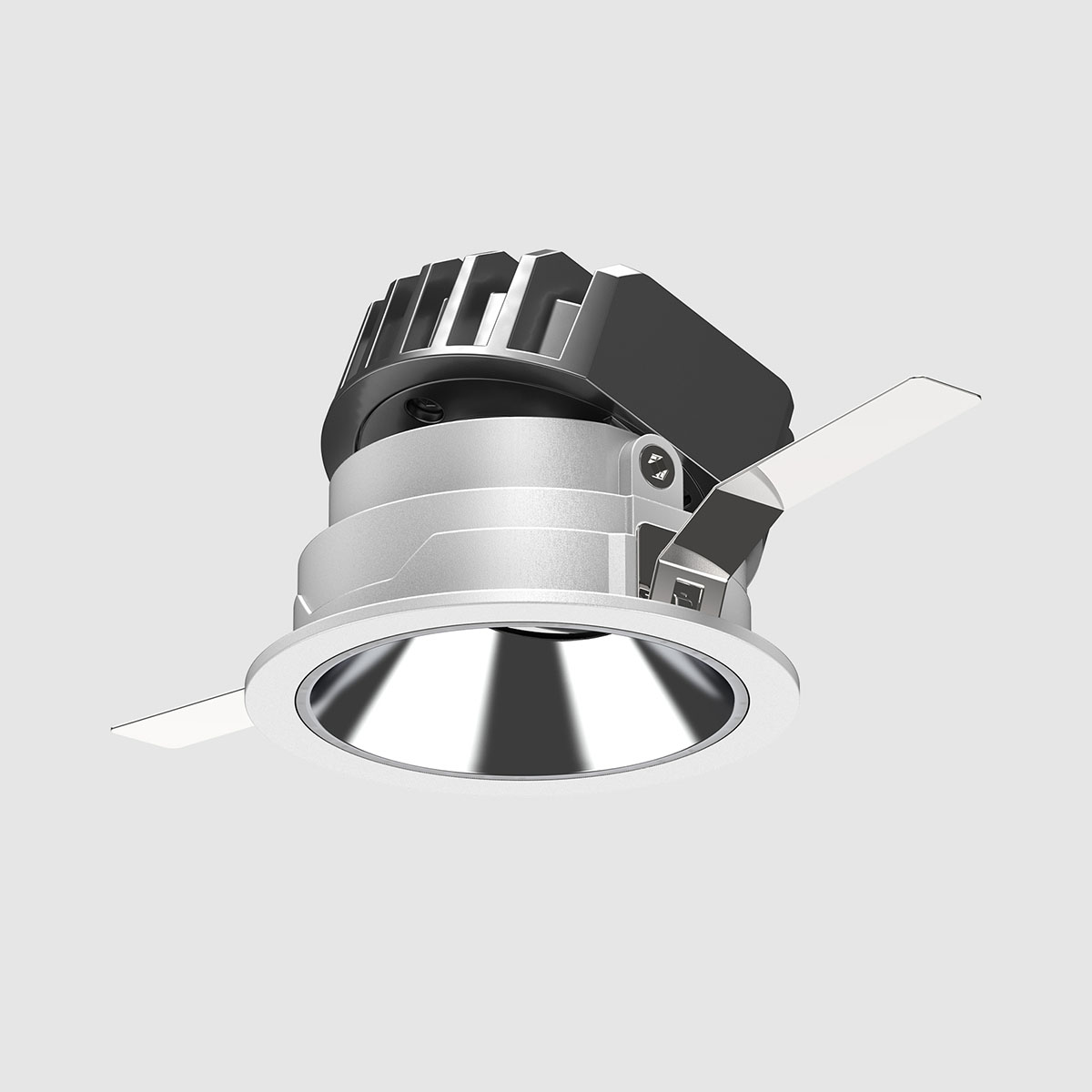

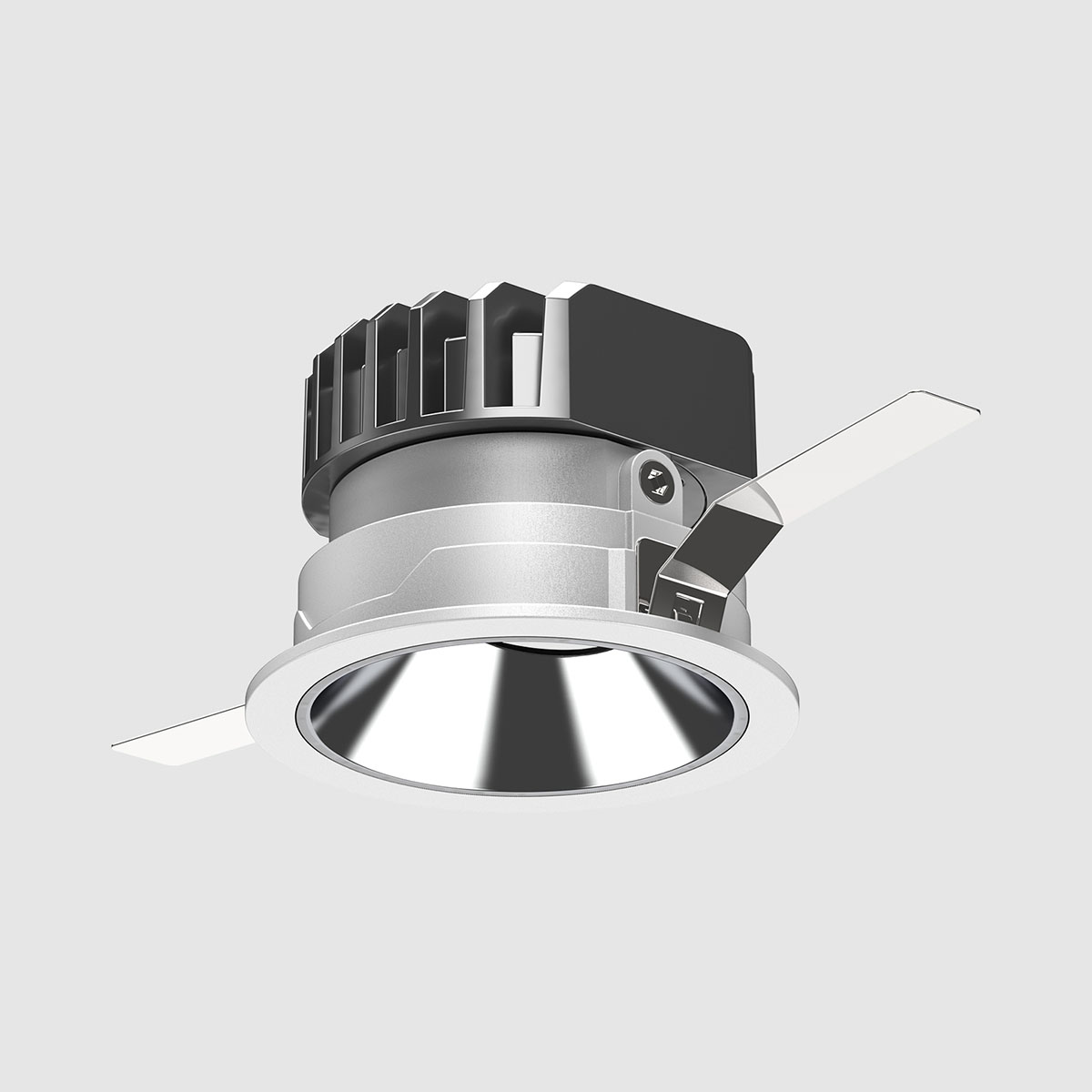

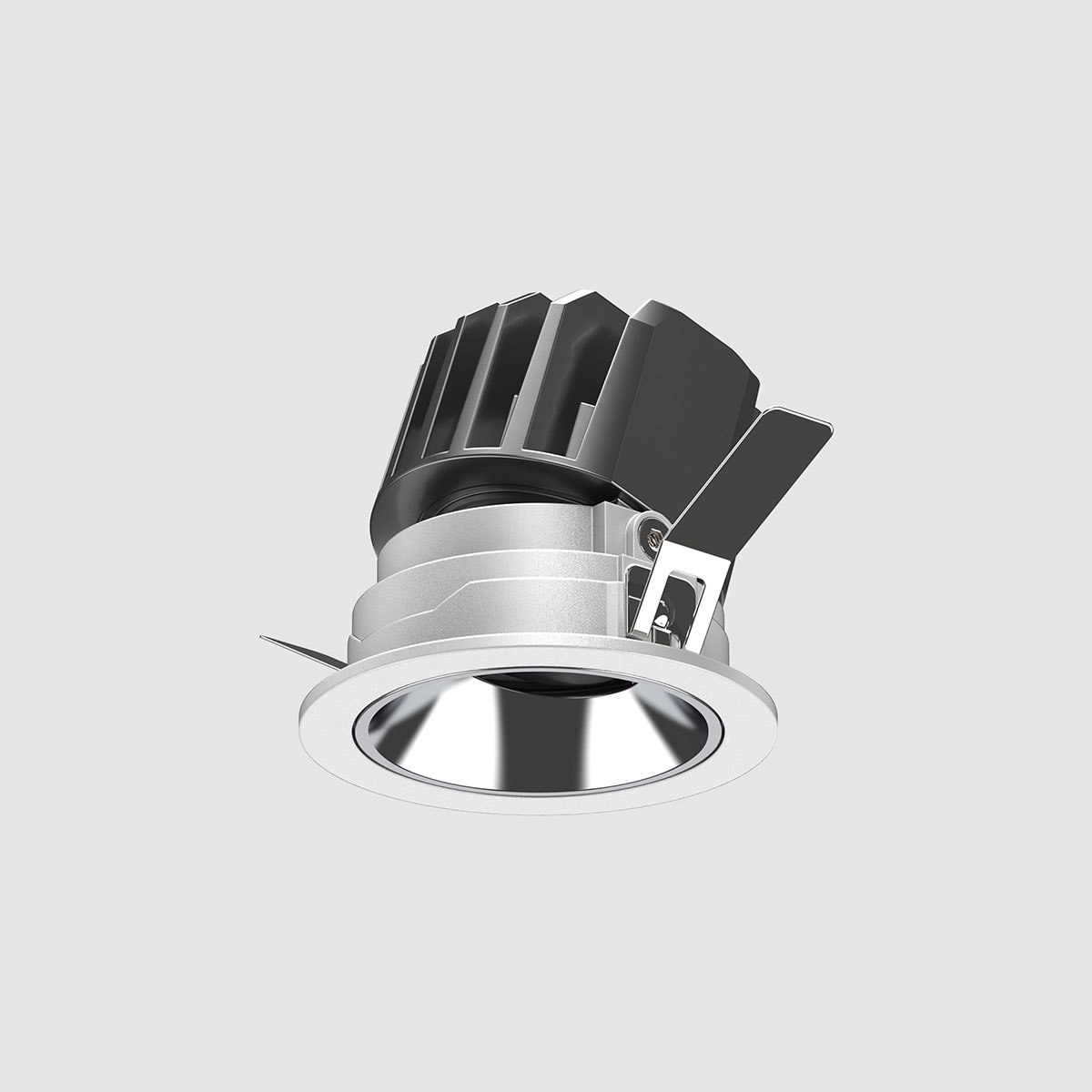

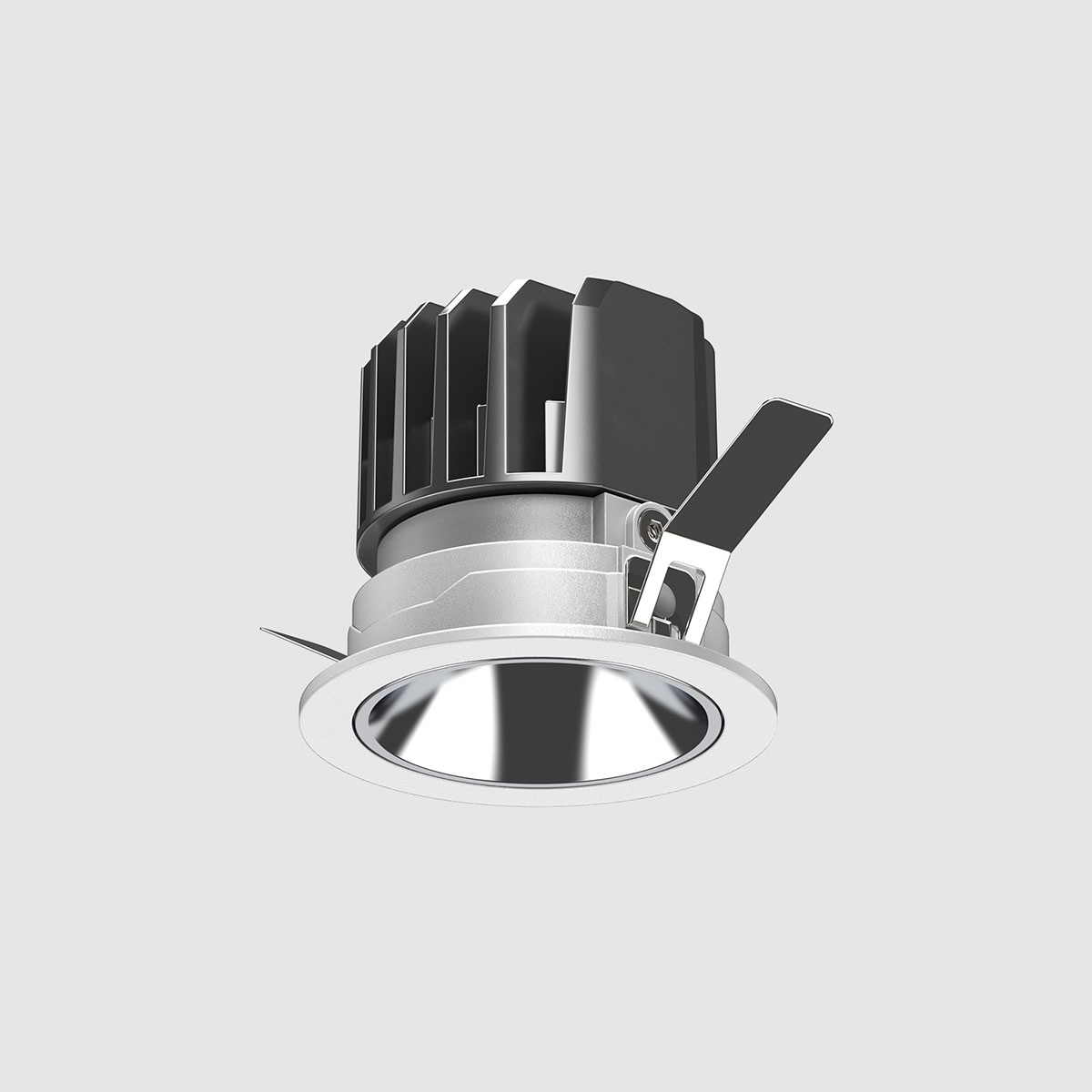

ROLUX Slim Spotlight SD-X7514A
BODY
Fixed recessed downlight with simple and clean design.Deep front frame provided Low UGR to create a confortable environment,Various of reflector color finishing to meet different using demand.
LED SOURCES
Citizen/Cree/Osram/Bridgelux
CCT:2700K,3000K,4000K,5000K,6000K
Other CRl, CCT options available per requests
DRIVER
Supplied with integrated non-dimmable driver.(external)
Dimming options: 0/1-10V, DALI (DT6/ DT8), Phase Cut, CASAMBI
OPTIC
Front Focal Lens
Beam angle: 15°/24°/38°/50°
| Input voltage (volts) |
| AC220-240V |
| Protection Index |
| IP20 |
|
| Beam angle |
| 15°/24°/38°/50° |
| UGR |
| <16 |
| Color temperature |
| 2700K/3000K/4000K/6000K/3CCT |
| Title |
| 25° |
| Color rendering index (Ra) |
| >90/ >95/ >97 |
| Rotation |
| 355° |
| Operating temperature |
| -25°C-50° |
| MacAdam step |
| 2-3 |
| Rated life hours |
| 35,000-50,000 LM80 |
| Finishes |
| White/Black |
| LED chip |
| COB |
| Reflector |
| Chromed silver/Matt Black&White/
Gun black/Champagne Gold |
| Certification |
| CE,CB,TUV,CCC,SAA |
| Accessories |
| Frosted LENS,Honeycomb,Spread LENS |
| Warranty |
| 5 Years |
| Lighting body material |
| Aluminum |
