BODY

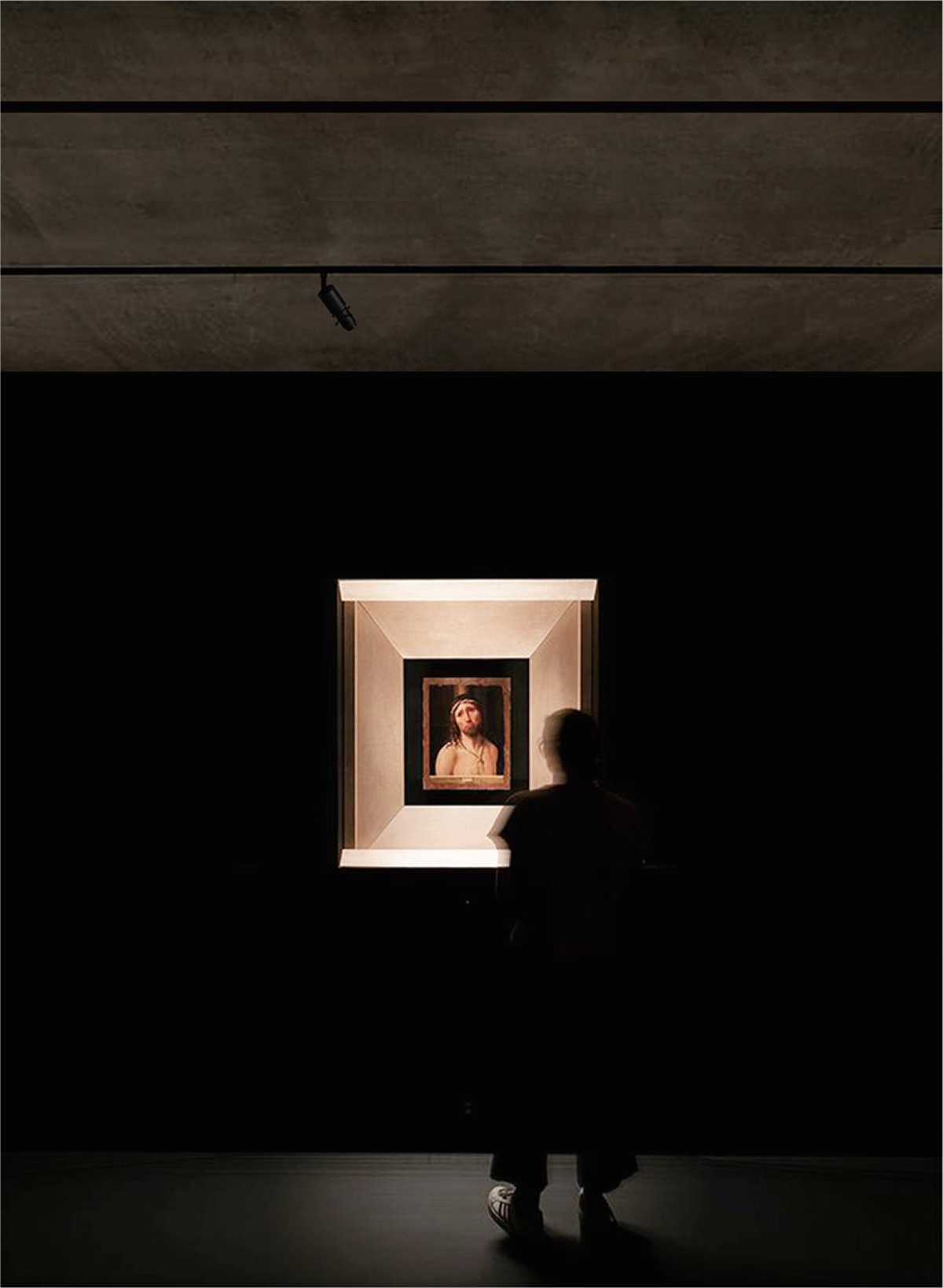

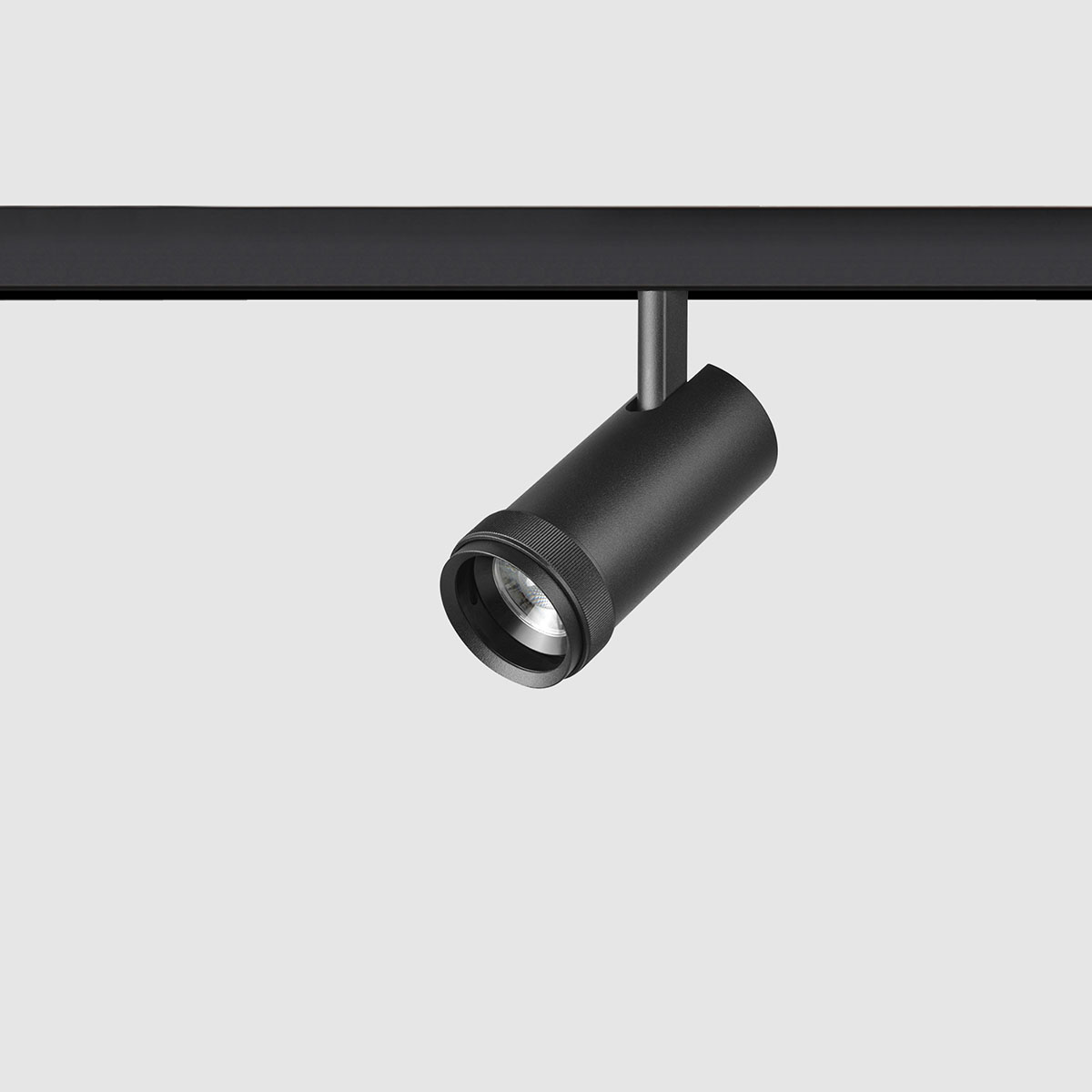

15-60°zoomable beam angle magnetic track spotlight,excellent lighting solution for accent lighting ,used for spaces in stores, galleries, resiential, etc
LED SOURCES(TOP LED BRAND USED)
OSRAM SMD
CRI: 90.95.97
CCT:2700K,3000K,4000K,5000K,6000K
SDCM<3
Other CRl, CCT options available per requests
DRIVER
used with DC48V system
Dimming options: 0/1-10V, DALI (DALI DT6/ DALI DT8),Phase Cut,CASAMBI
OPTIC
Zoomable Lens
Beam angle: 15-60°
| Input voltage (volts) | DC48V | Protection Index | IP20 | ||||
| Beam angle | 15-60° | UGR | <16 | ||||
| Color temperature | 2700K/3000K/4000K/6000K/3CCT | Title | 90° | ||||
| Color rendering index (Ra) | >90/ >95/ >97 | Rotation | 355° | ||||
| Operating temperature | -25°C-50° | MacAdam step | 2-3 | ||||
| Rated life hours | 35,000-50,000 LM80 | Finishes | White/Black | ||||
| LED chip | COB | Lighting body material | Aluminum | ||||
| Certification | CE,CB,TUV,CCC,SAA | Warranty | 5 Years |
