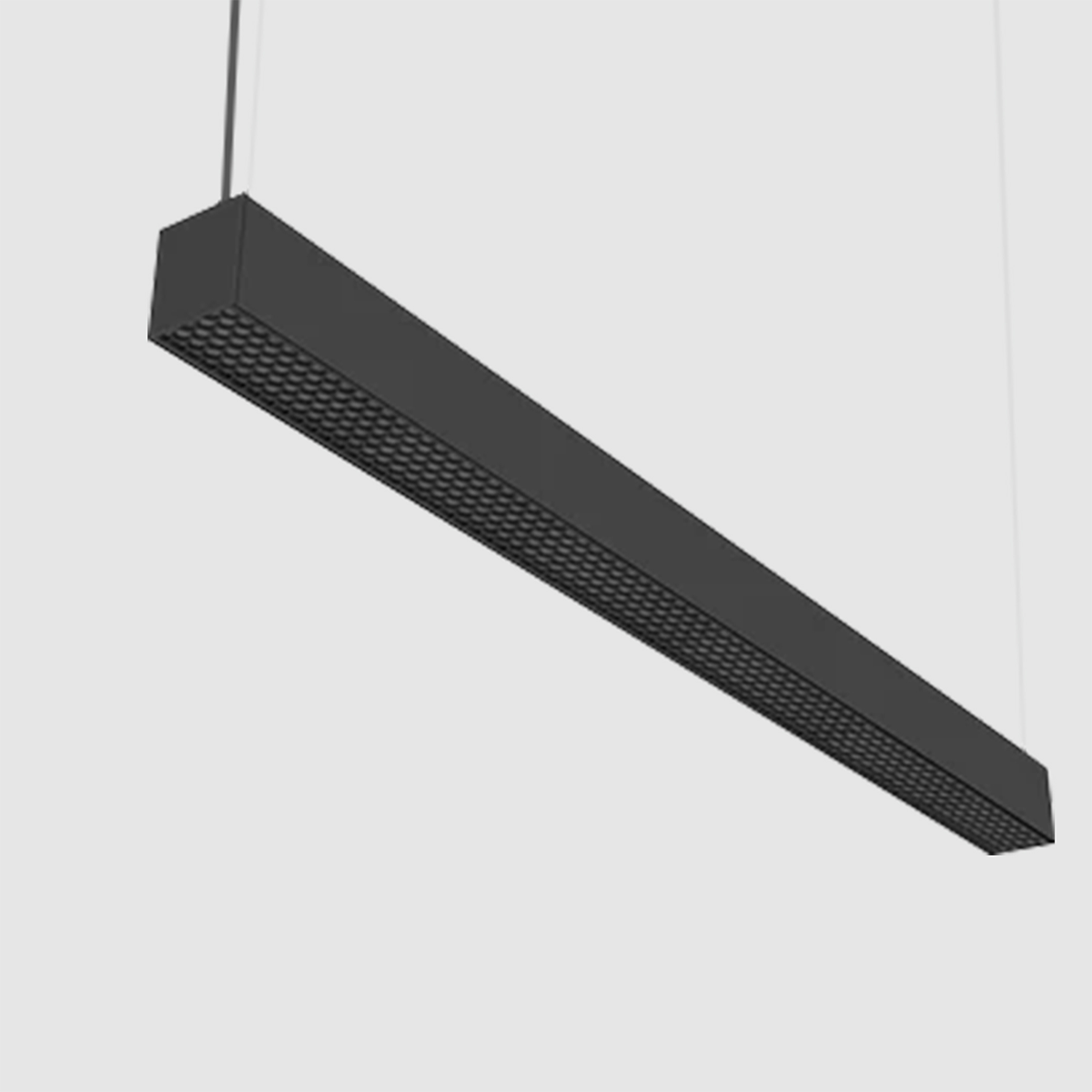

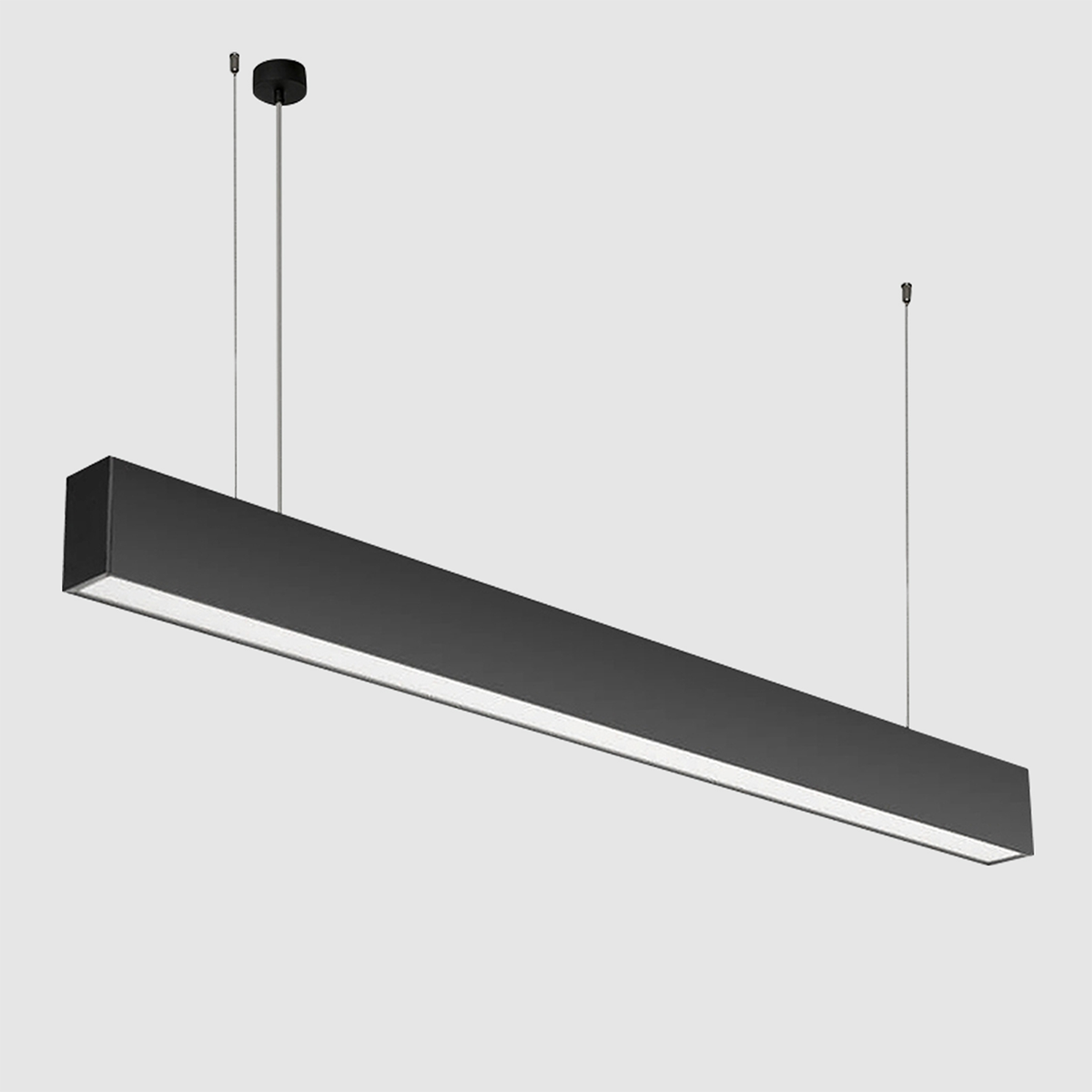

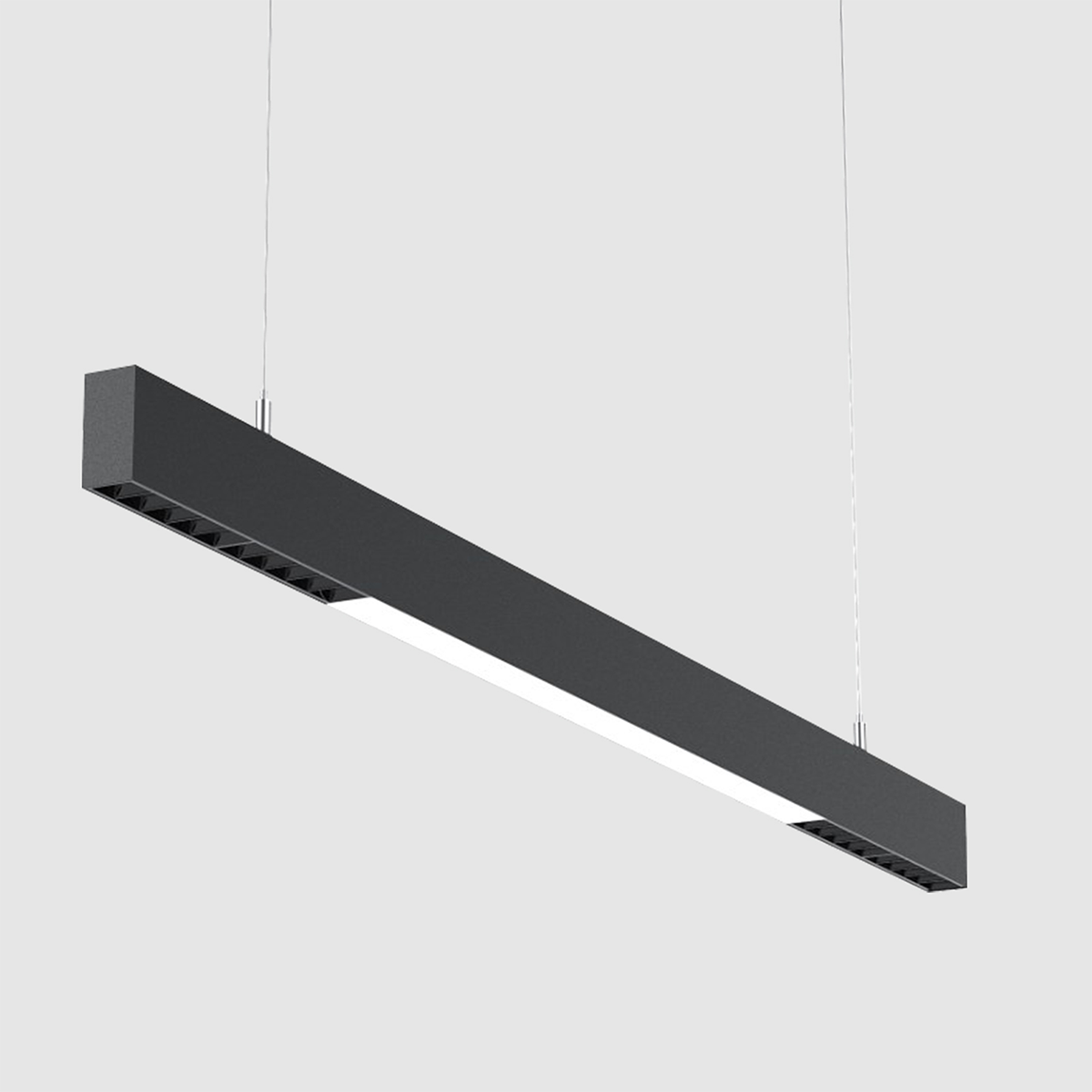

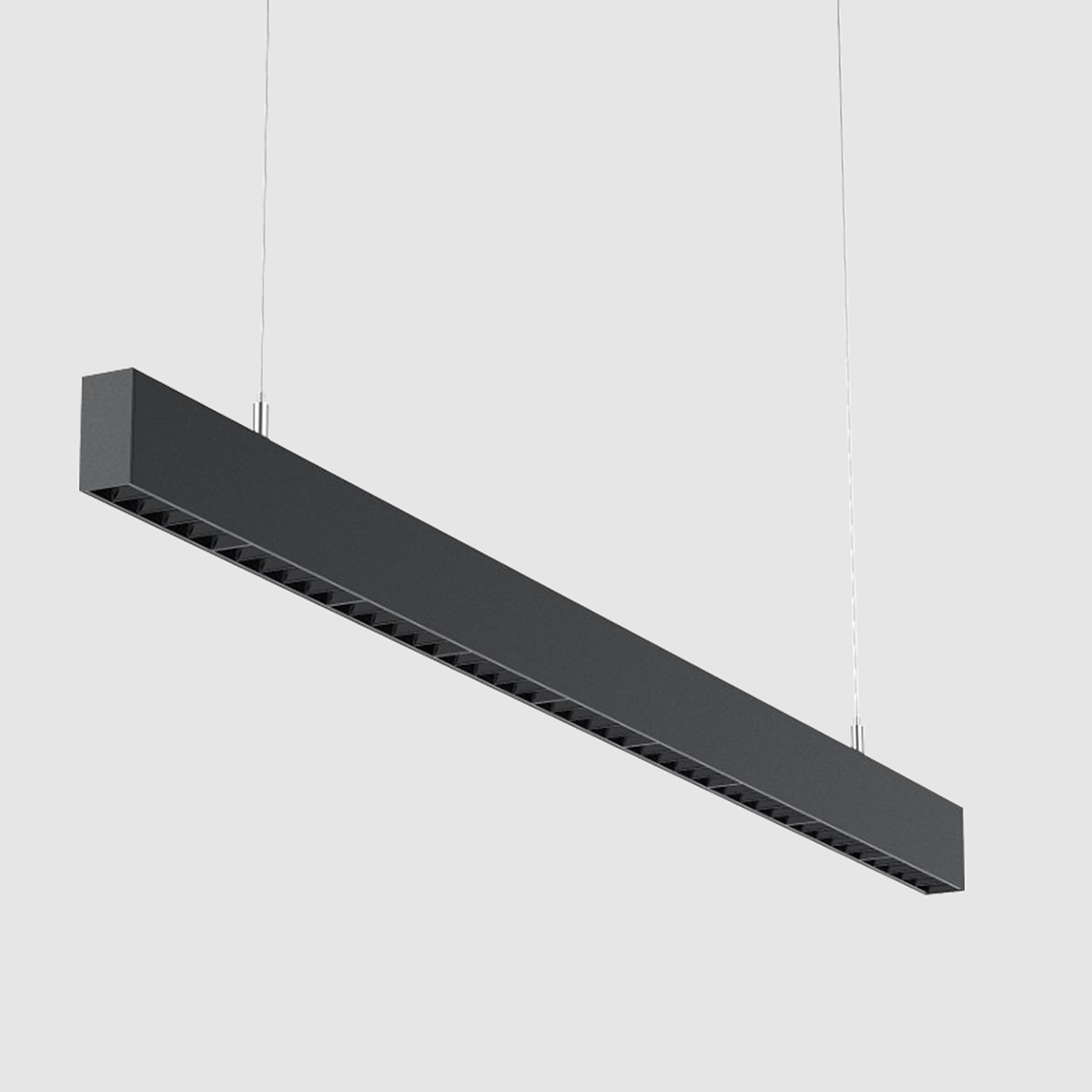

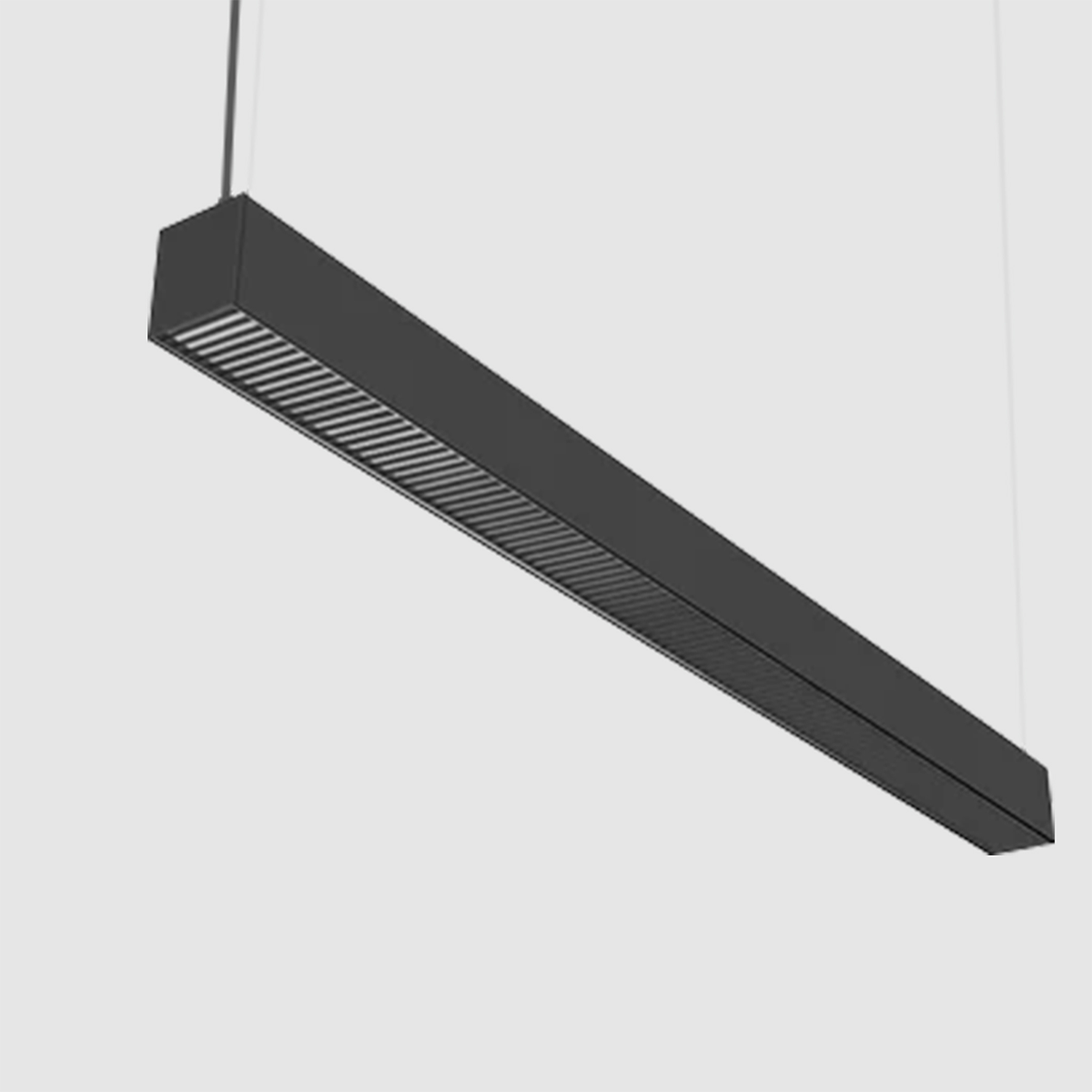

BARRY Grille Light TH-7149F
BODY
Various design of the linear light to wide beam,rotationally symmetrical light distribution for generallighting. Low URG design suitable for office, schoolworkshop.
LED SOURCES
Citizen/Cree/Osram/BridgeluxCRI: 90,95,97
CCT:2700K,3000K,4000K,5000K,6000K
3CCT,SDCM <3
Other CRl, CCT options available per requests.
DRIVER
Supplied with integrated non-dimmable driver.(external)Dimming options: 0/1-10V, DALI (DALI DT6/ DALI DT8), Phase Cut, CASAMBI
OPTIC
Opal DiffusierBeam angle: 120°
| Input voltage (volts) |
| AC220-240V |
| Protection Index |
| IP20 |
|
| Beam angle |
| 120° |
| UGR |
| <19 |
| Color temperature |
| 3000K/4000K/6000K/3CCT |
| Title |
| - |
| Color rendering index (Ra) |
| >83>90/ >95 |
| Rotation |
| - |
| Operating temperature |
| -25°C-50° |
| MacAdam step |
| 3 |
| Rated life hours |
| 35,000-50,000 LM80 |
| Finishes |
| White/Black/Matt Sliver(customized) |
| LED chip |
| SMD |
| Reflector |
| - |
| Certification |
| CE,CB,TUV,CCC,SAA |
| Accessories |
| 1, Supesnion wire kit & surface brasket
2. Various connection clips |
| Warranty |
| 5 Years |
| Lighting body material |
| Aluminum |
Accessories

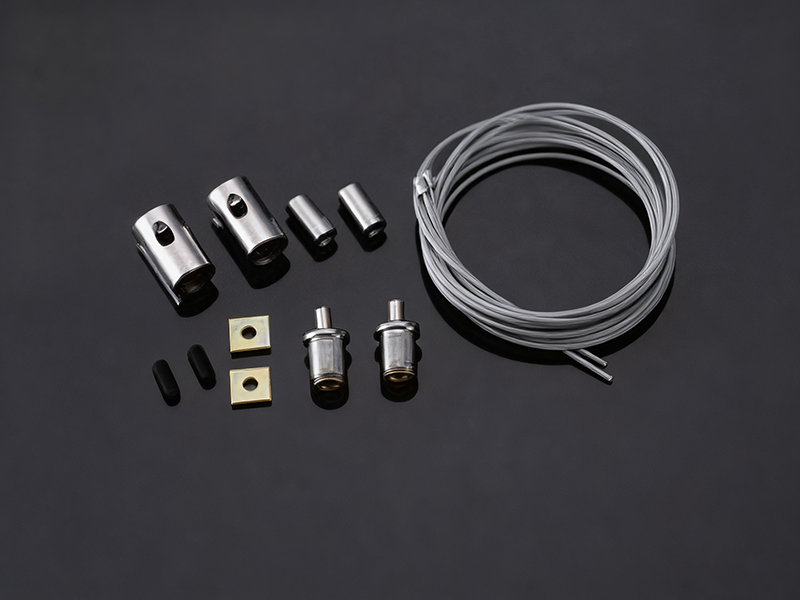

Suspension wire kit

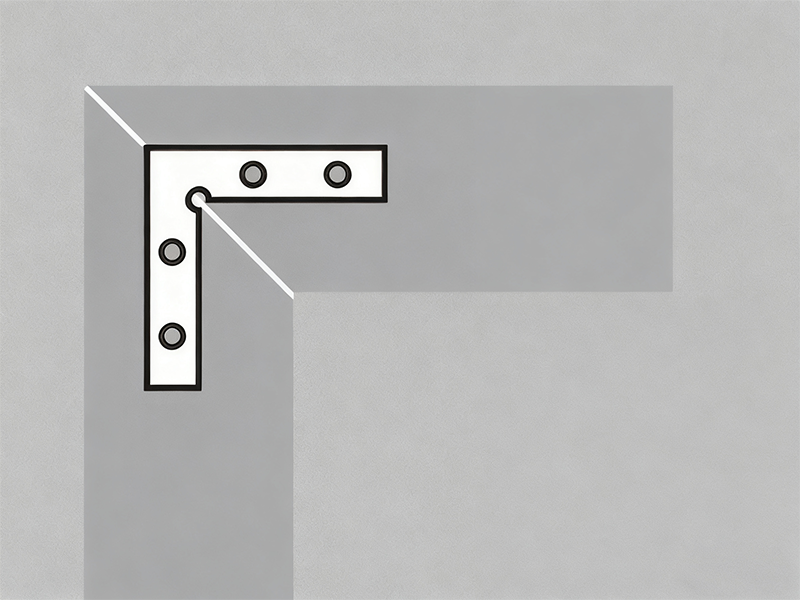

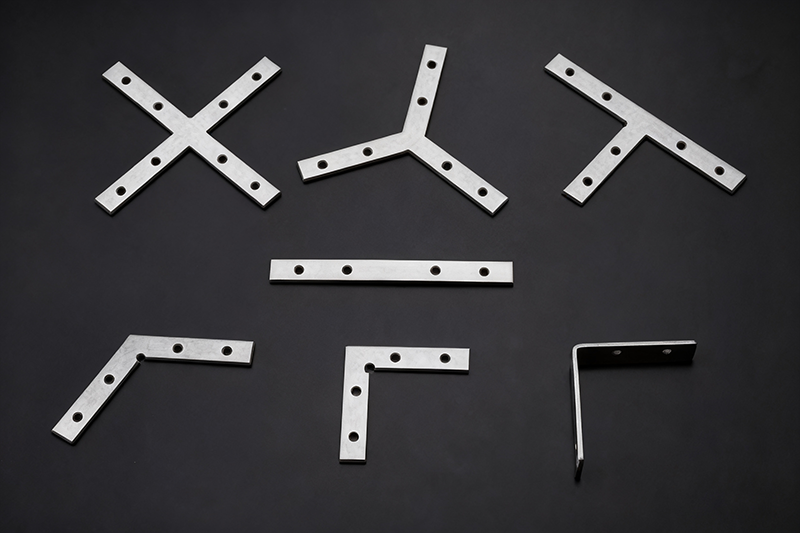

Connection Clips
