BODY

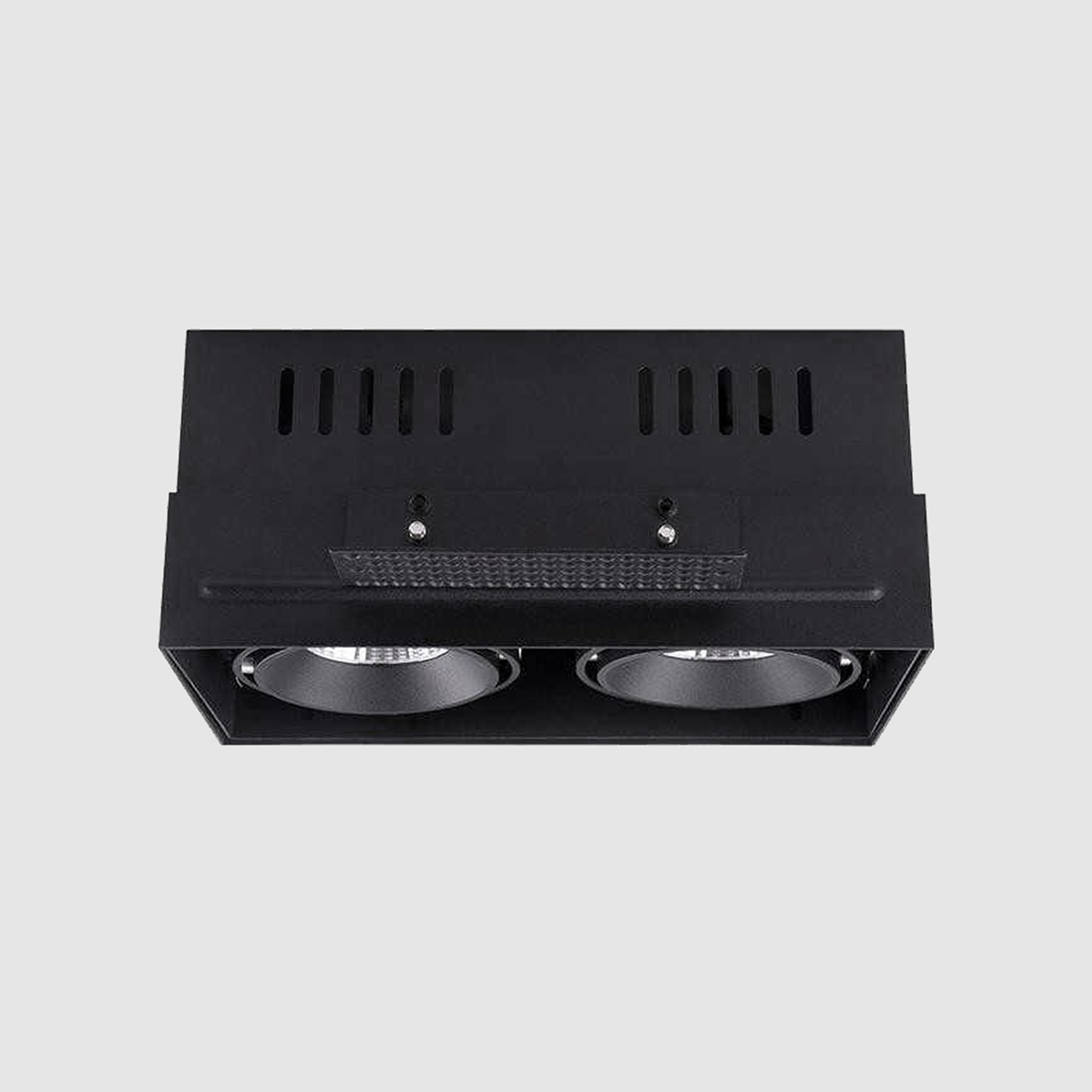

Multi-function luminaire family for down light and spot light effect.Delicate anti-glare mechanical design and sufficient heat management.
Can be pull out to arrive more accurate beaming, 355°horizontal rotation and 60° titling.

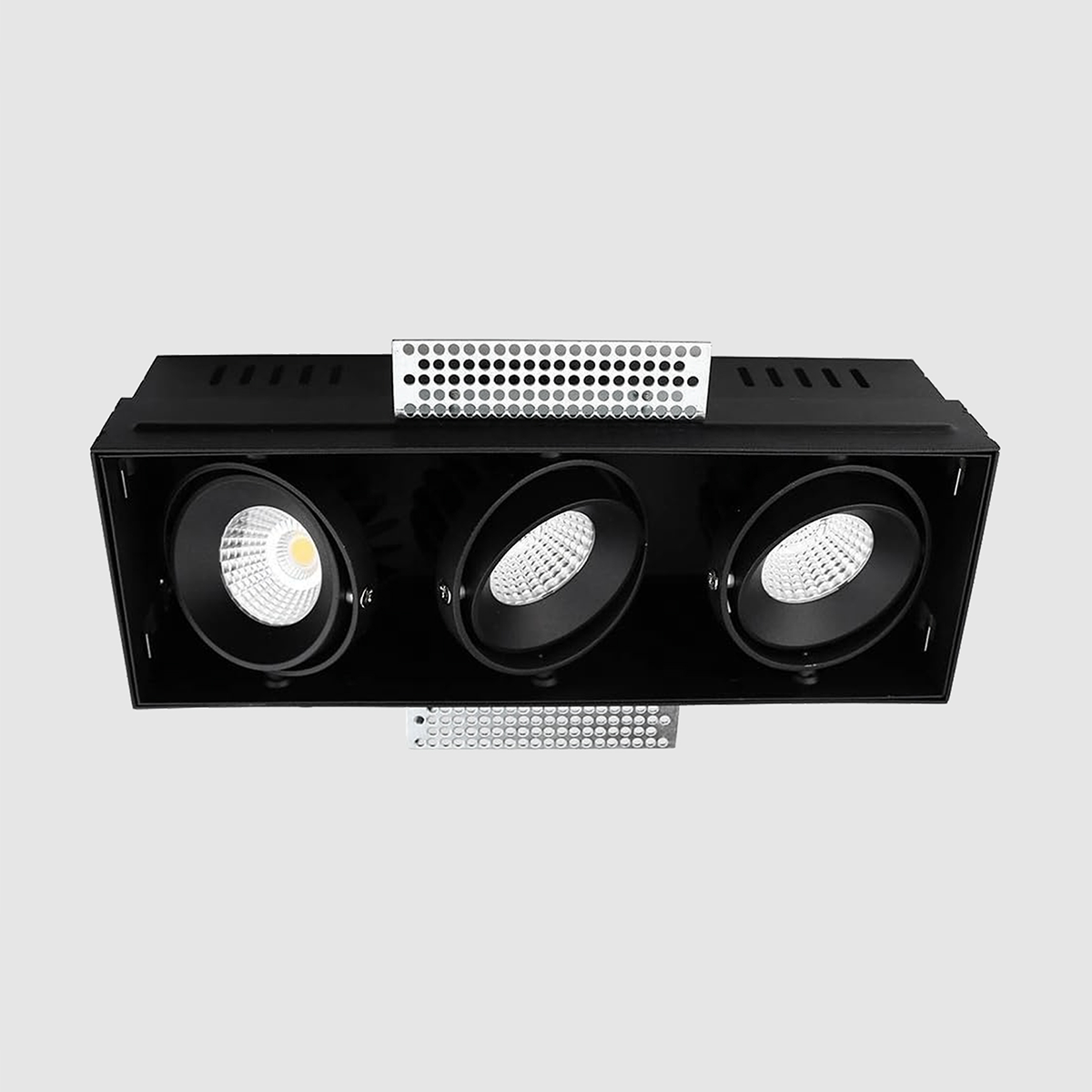

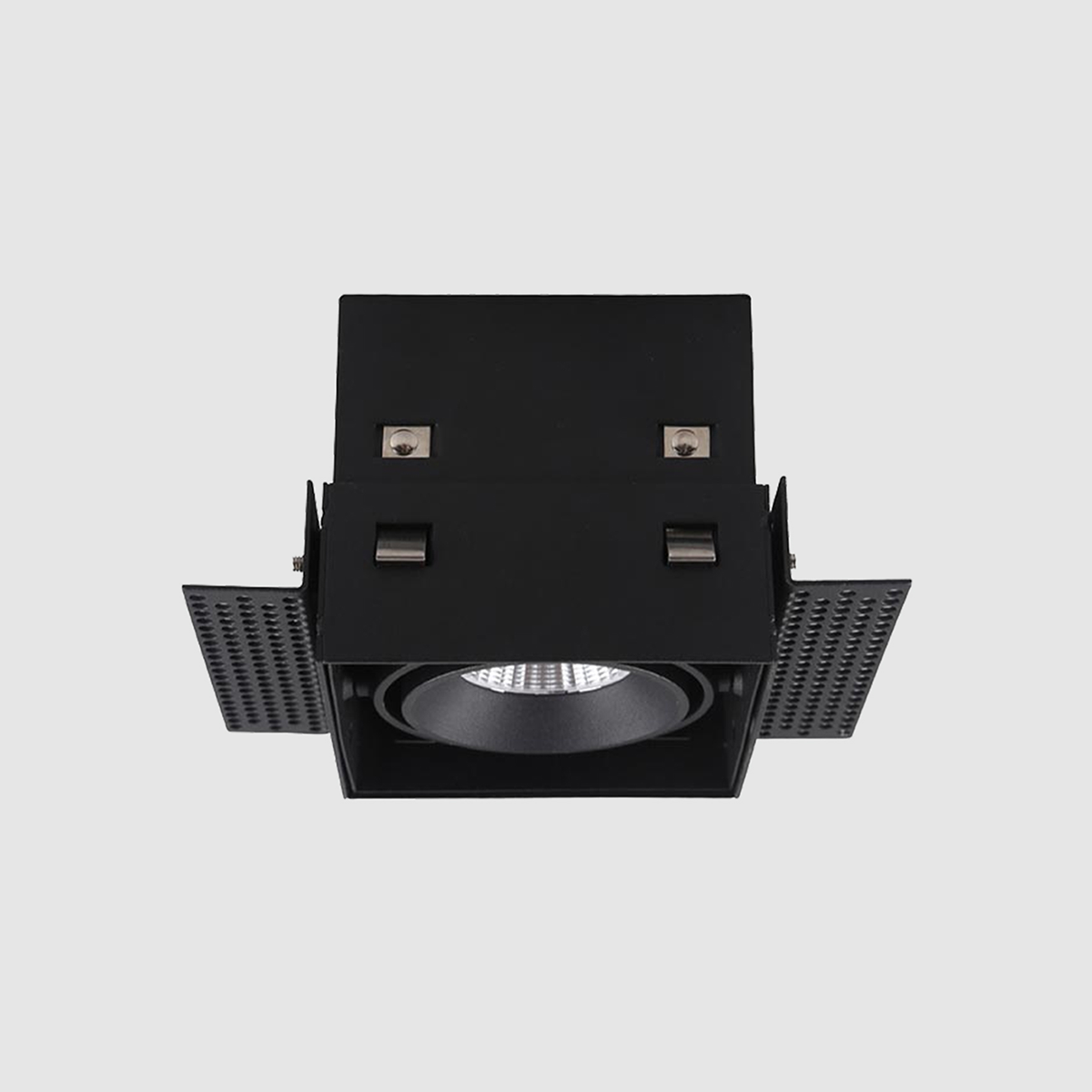

Three sizes and each have single / double / Triple available
LED SOURCES
Citizen/Cree/Osram/Bridgelux
DRIVER
Supplied with integrated non-dimmable driver.(Extemal)
Dimming options: 0/1-10V,DALI (DALI / DT8)Phase Cut, CASAMBI
OPTIC
Beam angle: 15°/24°/36°/50°
| Input voltage (volts) | AC220-240V | Protection Index | IP44 | ||||
| Beam angle | 15°/24°/36°/50° | UGR | <19 | ||||
| Color temperature | 2700K/3000K/4000K/6000K/3CCT | Title | - | ||||
| Color rendering index (Ra) | >90/ >95/ >97 | Rotation | - | ||||
| Operating temperature | -25°C-50° | MacAdam step | 2-3 | ||||
| Rated life hours | 35,000-50,000 LM80 | Finishes | White/Black | ||||
| LED chip | COB | Reflector | - | ||||
| Certification | CE,CB,TUV,CCC,SAA | Accessories | Frosted Lens/Honeycom/Spread Lens | ||||
| Warranty | 5 Years | Lighting body material | Aluminum |
