BODY

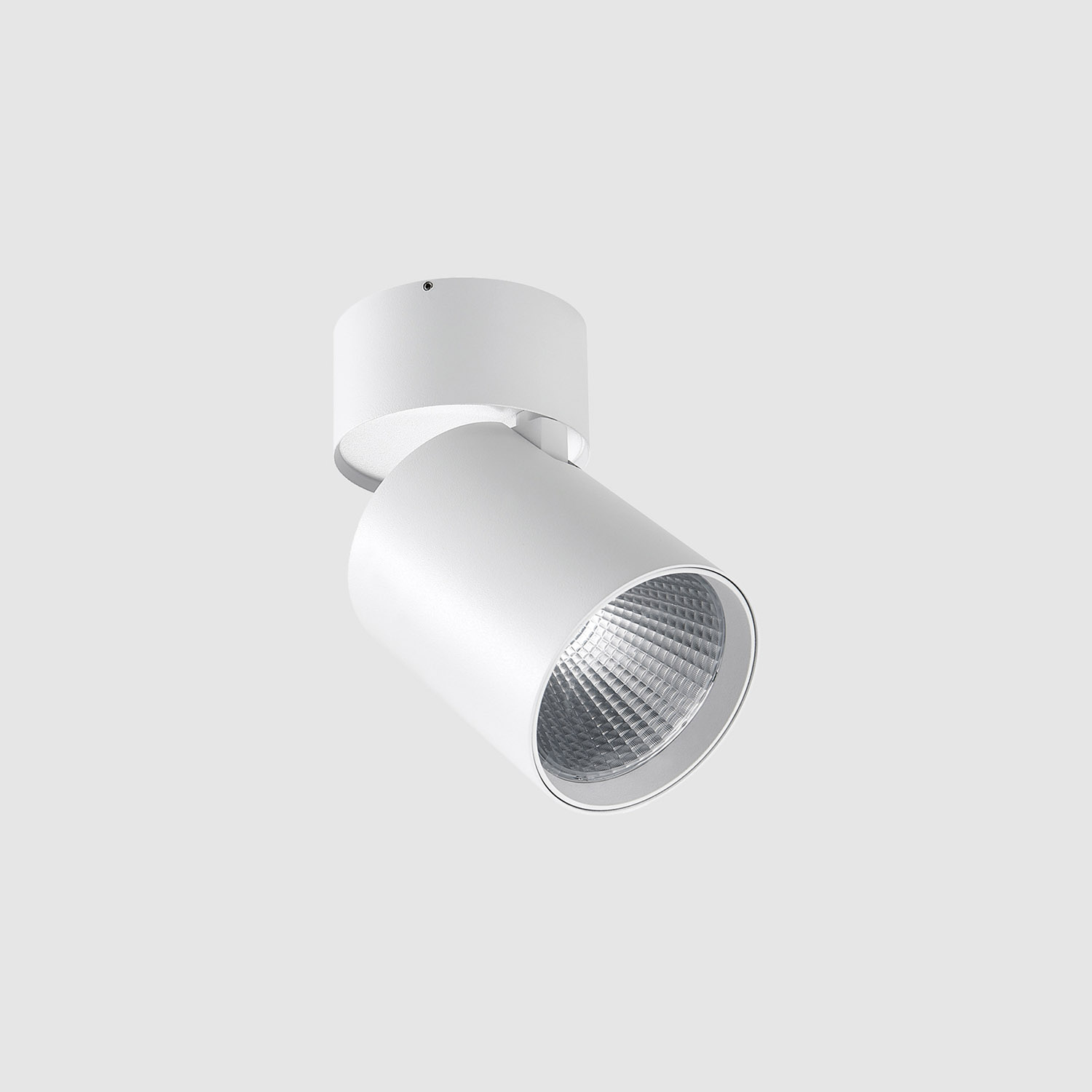

Surface Mounted downlight with simple and clean design.Deep front frame provided LOW UGR to create a confortable environment.
LED SOURCES(TOP LED BRAND USED)
Citizen/Cree/Osram/Bridgelux
CRI: 90.95.97
CCT:2700K,3000K,4000K,5000K,6000K
SDCM <3
Other CRl, CCT options available per requests
DRIVER
Supplied with integrated non-dimmable driver.(external)
Dimming options: 0/-10V, DALI (DALI DT6/ DALI DT8), Phase Cut, CASAMBI
OPTIC
Reflector
Beam angle: 15°/24°/36°/50°
| Input voltage (volts) | AC220-240V | Protection Index | IP40 | ||||
| Beam angle | 15°/24°/36°/50° | UGR | <21 | ||||
| Color temperature | 2700K/3000K/4000K/6000K/3CCT | Title | 90° | ||||
| Color rendering index (Ra) | >90/ >95/ >97 | Rotation | 355° | ||||
| Operating temperature | -25°C-50° | MacAdam step | 2-3 | ||||
| Rated life hours | 35,000-50,000 LM80 | Finishes | White/Black | ||||
| LED chip | COB | Reflector | - | ||||
| Certification | CE,CB,TUV,CCC,SAA | Accessories | - | ||||
| Warranty | 5 Years | Lighting body material | Aluminum |
