BODY

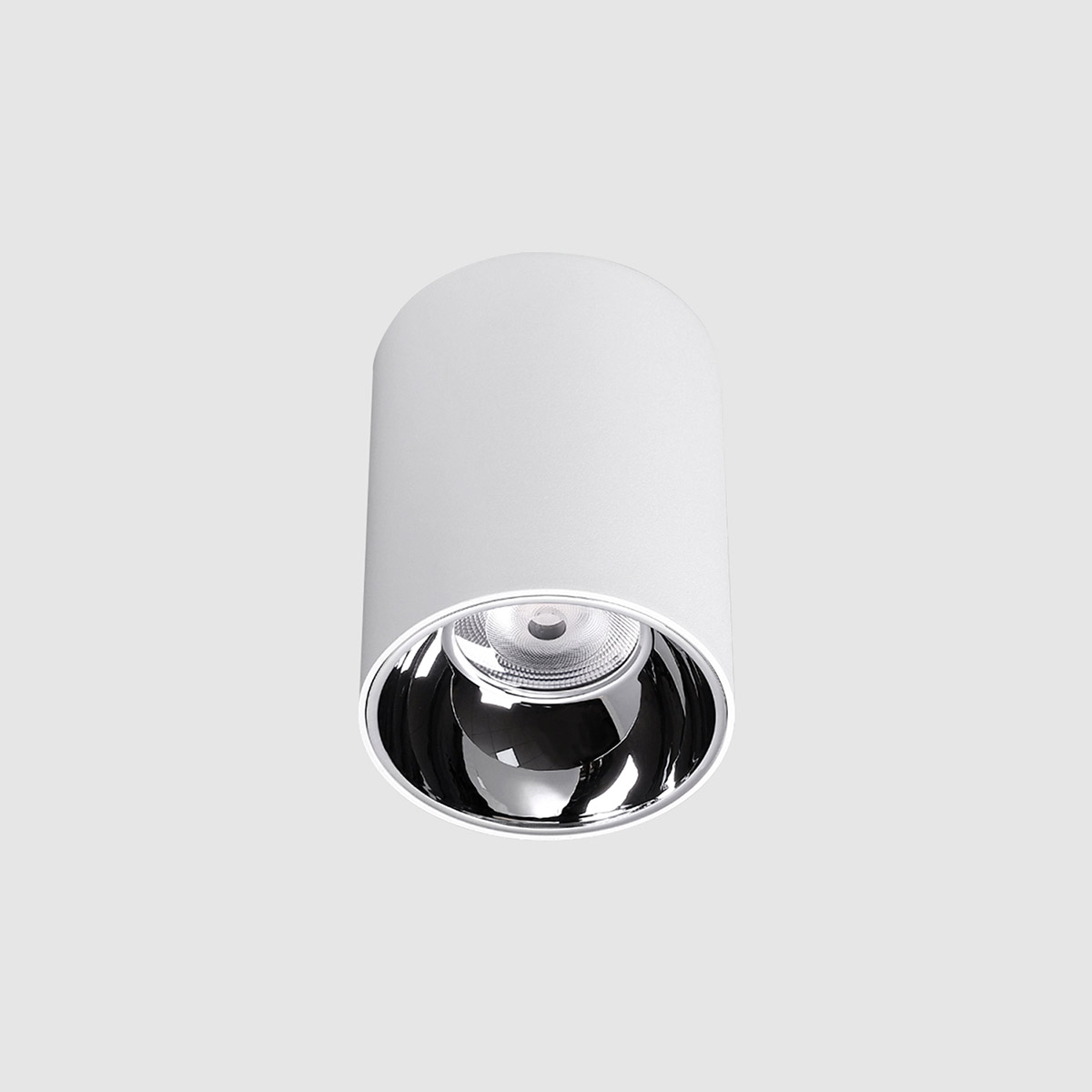

Surface Mounted downlight with simple and clean design.Deep front frame provided LOW UGR to create a confortableenvironment.

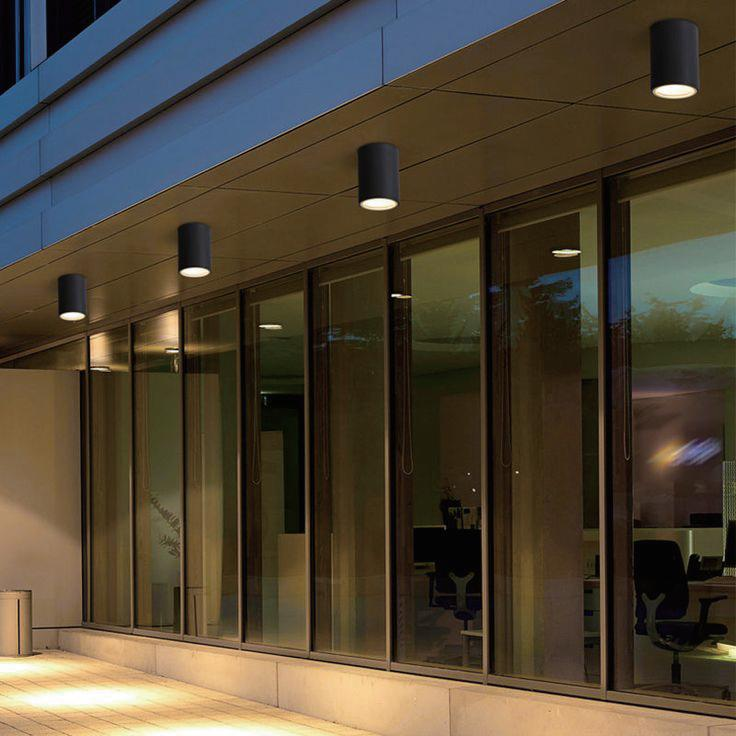

IP54 & IP65 Wateproof structure, can be used for bothindoor & outdoor
LED SOURCES
Citizen/Cree/Osram/BridgeluxCRI: 90,95.97
CCT:2700K,3000K,4000K,5000K,6000K
SDCM<3
Other CRl, CCT options available per requests.
DRIVER
Supplied with integrated non-dimmable driver.(external)
Dimming options: 0/1-10V, DALI (DT6/DT8), Phase Cut, CASAMBI
OPTIC
Beam angle: 20°/40”/60°
| Input voltage (volts) | AC220-240V | Protection Index | IP54,IP65 | ||||
| Beam angle | 20°/40°/60° | UGR | <19 | ||||
| Color temperature | 2700K/3000K/4000K/6000K/3CCT | Title | - | ||||
| Color rendering index (Ra) | >90/ >95/ >97 | Rotation | - | ||||
| Operating temperature | -25°C-50° | MacAdam step | 2-3 | ||||
| Rated life hours | 35,000-50,000 LM80 | Finishes | White/Black | ||||
| LED chip | COB | Reflector | White/Black/Morror/Gun black&white/Gold | ||||
| Certification | CE,CB,TUV,CCC,SAA | Accessories | Honeycomb | ||||
| Warranty | 5 Years | Lighting body material | Aluminum |
